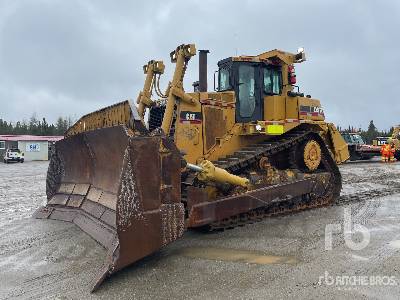

Caterpillar D9R WHA Crawler Tractor
Units
Dimensions
Dimensions
A
Length W/ Blade
17ft in
B
Width Over Tracks
9.62ft in
C
Height To Top Of Cab
9.85ft in
D
Length Of Track On Ground
11.39ft in
E
Ground Clearance
1.92ft in
F
Length W/O Blade
22.45ft in
Undercarriage
G
Track Gauge
7.39ft in
H
Standard Shoe Size
24.02in
Number Of Track Rollers Per Side
8
Ground Contact Area
6572.02in2
Specifications
Engine
Engine Model
3408E
Gross Power
405hp
Displacement
1098.5cu in
Operational
Operating Weight
105630.1lb
Fuel Capacity
216.1gal
Standard Blade
Width
14.2ft in
Height
112.1in
Capacity
37.7yd3
Cutting Depth
23.9in
