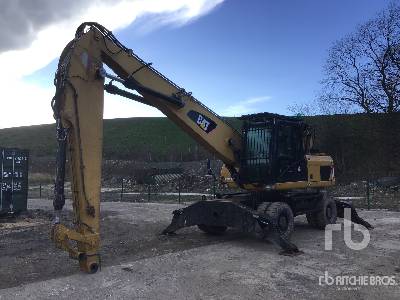

Caterpillar M316D Mobile Excavator
Dimensions
Boom/Stick Option (Mex) 1
Shipping Length Of Unit
28.06ft in
Shipping Height Of Unit
10.41ft in
Max Cutting Height
33.01ft in
Max Loading Height
22.87ft in
Max Reach Along Ground
29.24ft in
Max Vertical Wall Dig Depth
12.14ft in
Max Digging Depth
18.28ft in
Boom/Stick Option (Mex) 1
Va Boom 5.2m / stick 2.1m
Boom/Stick Option (Mex) 2
Shipping Length Of Unit
28.02ft in
Shipping Height Of Unit
10.41ft in
Max Cutting Height
34.13ft in
Max Loading Height
24.02ft in
Max Reach Along Ground
30.78ft in
Max Vertical Wall Dig Depth
13.36ft in
Max Digging Depth
19.92ft in
Boom/Stick Option (Mex) 2
VA Boom 5.2m / stick 2.6m
Boom/Stick Option (Mex) 3
Shipping Height Of Unit
10.41ft in
Shipping Length Of Unit
27.53ft in
Max Cutting Height
29.53ft in
Max Loading Height
19.76ft in
Max Reach Along Ground
28.58ft in
Max Vertical Wall Dig Depth
11.46ft in
Max Digging Depth
17.62ft in
Boom/Stick Option (Mex) 3
One-piece Boom 5.05m / stick 2.1m
Boom/Stick Option (Mex) 4
Shipping Height Of Unit
10.41ft in
Shipping Length Of Unit
28.06ft in
Max Cutting Height
32.68ft in
Max Loading Height
23.46ft in
Max Reach Along Ground
28.81ft in
Max Vertical Wall Dig Depth
13.46ft in
Max Digging Depth
17.89ft in
Boom/Stick Option (Mex) 4
Offset Boom 5.2m / stick 2.1m
Dimensions
Wheelbase
8.54ft in
Tail Swing Radius
7.49ft in
Overall Width
8.37in
Ground Clearance
1.22ft in
Overall Width - Outriggers Down
12.54ft in
Height To Top Of Cab
10.41ft in
Upper Structure Clearance
4.2ft in
Undercarriage
Ground Clearance
1.25ft in
Minimum Turning Radius - Standard Axle - End Of Va Boom
23ft in
Minimum Turning Radius - Wide Axle - End Of Va Boom
23ft in
Minimum Turning Radius - Wide Axle - Outside Of Tire
21ft in
Oscillation Axle Angle
9 degrees
Minimum Turning Radius - Standard Axle - Outside Of Tire
21ft in
Minimum Turning Radius - Wide Axle - End Of One-Piece Boom
28ft in
Minimum Turning Radius - Standard Axle - End Of One-Piece Boom
27ft in
Specifications
Engine
Cylinders
6
Number Of Cylinders
6
Engine Make
2236
Engine Model
C6.6 Acert
Gross Power
166hp
Net Power
158hp
Power Measured @
1800rpm
Displacement
403cu in
Torque Measured @
1400rpm
Net Torque
579lb ft
Bore
4.2in
Stroke
5in
Net Power - Iso 9249
158hp
Net Power - 80/1269/Eec
158hp
Engine Model
Cat C6.6 with ACERT Technology
Maximum Torque - 1,400 Rpm
579lb ft
Ratings
1800rpm
Net Power - 1,800 Rpm - Iso 9249
158hp
Operational
Operating Weight
42769.7lb
Fuel Capacity
81.9gal
Cooling System Fluid Capacity
8.5gal
Engine Oil Capacity
4gal
Front Diff Fluid Capacity
2.8gal
Rear Diff Fluid Capacity
3.7gal
Hydraulic System Fluid Capacity
58.2gal
Alternator Supplied Amperage
75amps
Hydraulic System Relief Valve Pressure
5076psi
Hydraulic Pump Type
Piston
Hydraulic Pump Flow Capacity
66.1gal/min
Oscillating Axle Angle
9degrees
Max Steering Angle
35degrees
Tire Size
10.00-20 16PR, dual
Swing Mechanism
Swing Speed
10.5rpm
Swing Torque
29502lb ft
Transmission
Transmission Type
gear
Number Of Forward Gears
2
Number Of Reverse Gears
2
Max Travel Speed
23mph
Drawbar Pull
21806lb
Creeper Speed - 2nd Gear
8mph
Forward/Reverse - 1st Gear
5mph
Creeper Speed - 1st Gear
2mph
Forward/Reverse - 2nd Gear
23mph
Maximum Gradeability
63%
Tires
Standard
1) 10.00-20 (dual pneumatic)
Optional
1) 11.00-20 (dual pneumatic) 2) 18 R 19.5 XF (single pneumatic) 3) 10.00-20 (dual solid rubber)
Weights
Counterweights - Standard
8157lb
Counterweights - Optional
9039lb
Dozer Blade
1700lb
Outriggers
2270lb
Va Boom* - Rear Dozer Only
36707lb
Va Boom* - Rear Dozer, Front Outriggers
38912lb
Va Boom* - Front And Rear Outriggers
39352lb
Sticks - Short (2100 Mm)
1036lb
Sticks - Medium (2400 Mm)
1133lb
One-Piece Boom* - Rear Dozer Only
35605lb
Sticks - Long (2600 Mm)
1168lb
Offset Boom* - Front And Rear Outriggers
40455lb
Offset Boom* - Rear Dozer Only
37809lb
Offset Boom* - Rear Dozer, Front Outriggers
40014lb
One-Piece Boom* - Front And Rear Outriggers
38250lb
One-Piece Boom* - Rear Dozer, Front Outriggers
37809lb
Sticks - Industrial (3100 Mm)
992lb
Buckets
Reference Bucket Capacity
1.1yd3
Minimum Bucket Capacity
0.5yd3
Maximum Bucket Capacity
1.5yd3
Hydraulic System
System
61 gal (US)
Tank Capacity
36gal
Maximum Pressure - Auxiliary Circuit - High Pressure
5076 psi
Maximum Pressure - Implement Circuit - Normal
5076 psi
Maximum Pressure - Implement Circuit - Heavy Lift
5439 psi
Maximum Pressure - Auxiliary Circuit - Medium Pressure
2683 psi
Maximum Pressure - Travel Circuit
5076 psi
Maximum Flow - Implement/Travel Circuit
66 gal/min
Maximum Flow - Swing Mechanism
21 gal/min
Maximum Flow - Auxiliary Circuit - High Pressure
66 gal/min
Maximum Flow - Auxiliary Circuit - Medium Pressure
13 gal/min
Maximum Pressure - Swing Mechanism
5366 psi
Service Refill Capacities
Fuel Tank
82gal
Engine Crankcase
4gal
Final Drive
0.7gal
Powershift Transmission
0.7gal
Front Steering Axle - Differential
2.8gal
Rear Axle - Housing (Differential)
3.7gal
Cooling
9.5gal
Drive
Maximum Travel Speed
23mph
Sound Levels
Exterior Sound
Exterior Sound
Working Ranges
Maximum Digging Depth
20ft in
Maximum Reach - Ground Level
30.8ft in
Bucket Specifications
Bucket Capacities
0.38 to 1.26 m3 (0.5 to 1.65 yd3)
Cab/Rops/Fogs
Standards
Standards
