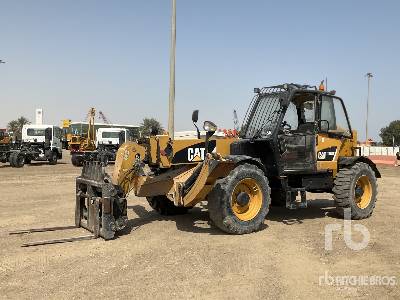

Caterpillar TH330B Telescopic Forklift
Units
Dimensions
Dimensions
A
Length To Fork Face
16.28ft in
E
Ground Clearance
1.4ft in
B
Width Over Tires
7.71ft in
C
Overall Height
7.45ft in
D
Wheelbase
10.01ft in
Height - Top Of Hood
70.92in
Height
7.4ft in
Length - Front Of Tire
14.14ft in
Turning Radius - Over Tires
10.9ft in
Turning Radius Outside Tires
10.96ft in
Wheel Base
10ft in
Width
7.85 ft
Length - Fork Face
16.27ft in
Rear - Overhang
2.07 ft
Turning Radius - Over Forks
14.9ft in
Lift
F
Max Lift Height
23.63ft in
G
Max Forward Reach
12.47ft in
Max Load At Max Height
4400lb
Max Load At Max Reach
2750lb
Max Lift Capacity
7000lb
Specifications
Engine
Number Of Cylinders
4
Engine Make
2236
Engine Model
3054E
Gross Power
99hp
Net Power
94.9hp
Power Measured @
2200rpm
Max Torque
303lb ft
Torque Measured @
1400rpm
Displacement
268cu in
Bore
4in
Stroke
5in
Engine Model
Caterpillar 3054E
Gross Power - Basic
99.9hp
Net Power (Basic)
96.3hp
Gross Power - Premium
123hp
Net Power (Premium)
119.6hp
Maximum Torque - Basic
303lb ft
Maximumtorque - Premium
333lb ft
Net Power (Premium With Reverse Fan System)
116.7hp
Operational
Operating Weight
15476.5lb
Fuel Capacity
26.4gal
Hydraulic System Fluid Capacity
15gal
Transmission
Transmission Type
Power shift
Number Of Forward Gears
4
Number Of Reverse Gears
3
Max Speed - Forward
25mph
Max Speed - Reverse
13mph
Weights
Operating Weight
15470lb
Hydraulic
Pump Type
Axial Piston Pump
Pump Flow Capacity
30gal/min
Relief Valve Pressure
3626psi
Hydraulic System
Pump Type
Variable Displacement Load Sensing Axial Piston Pump
Auxiliary Hydraulic Supply - Intermittent
24 gal/min
Auxiliary Hydraulic Supply - Continuous
15.6 gal/min
Maximum System Pressure
3626 psi
Maximum Pump Flow
30 gal/min
Operating Specifications
Rated Load Capacity
7000lb
Maximum Lift Height
24ft in
Maximum Forward Reach
12.5ft in
Top Travel Speed
25mph
Load At Maximum Height
4400lb
Load At Maximum Reach
2750lb
Load At Maximum Reach - No Stabilizers
2750lb
Load At Maximum Height - No Stabilizers
4400lb
Service Refill Capacities
Fuel Tank
26.4gal
Hydraulic Tank
15gal
Additional Fuel Tank
13gal
Boom Performance
Boom Up
7 s
Boom Down
6 s
Tele In
6 s
Tele Out
6 s
Crowd Forward - Dump
3 s
Crowd Backward
3 s
Combined - Up And Out
11 s
Combined - Down And In
6 s
Drawbar Pull - Basic
17985lb
Bucket Breakout Force
14523lb
Boom Breakout Force
8723lb
Drawbar Pull - Premium
21357lb
Transmission Speeds
Forward - 4
20mph
Forward - 1
4mph
Forward - 2
8mph
Forward - 3
13mph
Reverse - 1
4mph
Reverse - 2
8mph
Reverse - 3
13mph
