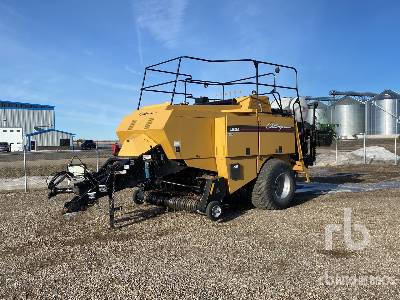

Challenger LB33 Baler
Units
Dimensions
Baler Pickup
B
Overall Width
6.47ft in
Number Of Bars
4
Number Of Tines
112
Tine To Tine Width
5.85ft in
Lift Type
Hydraulic Cylinder
Dimensions
A
Overall Length
28.19ft in
B
Overall Width
8.44ft in
C
Overall Height
10.37ft in
Tractor Pto Power Required
90hp
Weight
13957.47lb
Specifications
Bale Size
Bale Height
2.9ft in
Bale Width
2.7ft in
Bale Length - Max
8.3ft in
Bale Weight - Min
1000.9lb
Bale Weight - Max
1501.4lb
Feeding Chamber
Packer Type
Fork type, 4 tine
Plunger
Spm
41
Stroke Length
710 mm
Bearing Type
4 Sealed Tapered Roller Bearings, 2 sealed ball baring rollers
Wrapping System
Twine Type
Hesston Double Knot Type
Twine Ball Capacity
20
