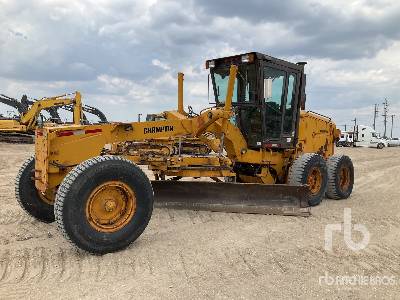

Champion 780A Motor Grader
Units
Dimensions
Dimensions
A
Overall Length
28.51ft in
D
Wheelbase
20.5ft in
H
Blade Base
8.92ft in
Overall Height With Cab
11.5ft in
Overall Width
9.17ft in
Tread Width
90.99in
Specifications
Engine
Torque
630lb ft
Number Of Cylinders
6
Gross Horsepower
215hp
Engine Make
Cummins
Engine Model
LT-10-C
Net Power
200hp
Power Measured @
2100rpm
Torque Measured @
1300rpm
Displacement
610.3cu in
Bore
5in
Stroke
5.4in
Aspiration
Turbocharged
Operational
Std Operation Weight - Front Axle
12160lb
Hydraulic System Fluid Capacity
23.8gal
Std Operation Weight - Rear Axle
28440lb
Std Operation Weight - Total
40600lb
Oil System Fluid Capacity
10.4gal
Fuel Capacity
100gal
Cooling System Fluid Capacity
10.8gal
Transmission Fluid Capacity
10.3gal
Rear Diff/Final Drive Fluid Capacity
9gal
Tandem Case Fluid Capacity (Each)
27.8gal
Tire Size
16.00 * 24, G-2
Steering
Articulation Angle
22degrees
Turning Radius
25.5ft in
Transmission
Transmission Type
Powershift
Number Of Gears - Forward
8
Number Of Gears - Reverse
4
Max Speed - Forward
24.2mph
Max Speed - Reverse
17.3mph
Front Axle
Wheel Lean
18degrees
Oscillation - Total
16degrees
Ground Clearance
2.3ft in
Moldboard
Moldboard Width
14ft in
Moldboard Height
31in
Moldboard Thickness
1in
Side Shift Left
53.6in
Hydraulic System
Pump Flow
48.2gal/min
Relief Valve Pressure
2500psi
Circle
Blade Ground Clearance
1.6ft in
Blade Cutting Depth
2.1ft in
Diameter
66.7in
Rotation
360degrees
Shift Left
17.6in
Blade Tip Angle - Front
46degrees
Blade Tip Angle - Rear
13degrees
