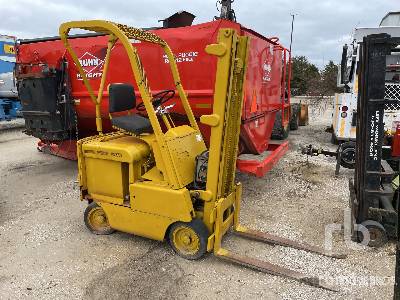

Clark Michigan C20D Forklift
Units
Dimensions
Dimensions
A
Length To Fork Face
8.19ft in
B
Overall Width
4.02ft in
C
Overall Height - Mast Lowered
7.11ft in
D
Wheelbase
5.32ft in
E
Ground Clearance
5.32in
F
Height To Top Of Overhead Guard
7.11ft in
G
Max Fork Height
15.75ft in
Right Angle Stack
8.86ft in
Turning Radius
7.37ft in
Mast
H
Mast Tip Forward
6degrees
I
Mast Tip Rear
5degrees
Number Of Mast Sections
3
Lower Speed
89ft/min
Max Fork Spread
39in
Load Center
24in
Load Capacity
4000lb
Lift Speed
110ft/min
Specifications
Engine
Number Of Cylinders
4
Engine Make
2348
Engine Model
4TNV94
Power
59hp
Torque
130lb ft
Power Measured @
2500rpm
Displacement
171cu in
Torque Measured @
1600rpm
Fuel Type
Diesel
Operational
Operating Weight
8088lb
Tire Type
Pneumatic
Number Of Front Wheels
2
Number Of Rear Wheels
2
Max Speed
12mph
