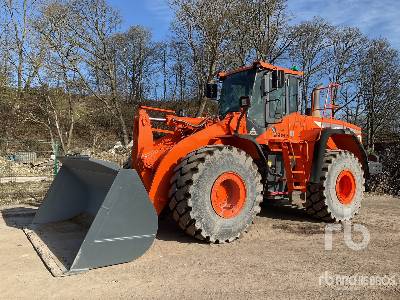

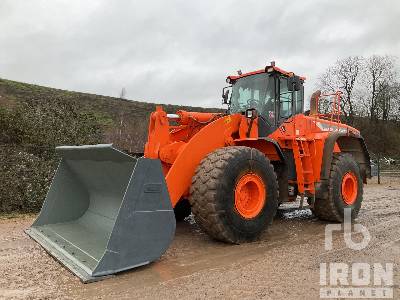

Doosan MEGA160-V Wheel Loader
Units
Dimensions
Bucket
G
Dump Clearance At Max Raise
9.01ft in
Bucket Capacity - Heaped
2.1yd3
Bucket Width
8.04ft in
Breakout Force
17200lb
Dimensions
E
Ground Clearance
1.48ft in
A
Length With Bucket On Ground
20.97ft in
B
Width Over Tires
7.55ft in
C
Height To Top Of Cab
10.44ft in
D
Wheelbase
8.86ft in
F
Hinge Pin - Max Height
11.85ft in
H
Reach At Max Lift And Dump
2.95ft in
Specifications
Engine
Number Of Cylinders
6
Engine Make
2252
Engine Model
DB58
Net Power
104hp
Gross Power
110hp
Power Measured @
2200rpm
Max Torque
268lb ft
Displacement
353cu in
Torque Measured @
1600rpm
Aspiration
naturally aspired
Operational
Operating Weight
18960lb
Fuel Capacity
48.9gal
Hydraulic System Fluid Capacity
26.5gal
Engine Oil Fluid Capacity
3.5gal
Cooling System Fluid Capacity
7.7gal
Transmission Fluid Capacity
5.3gal
Front Axle/Diff Fluid Capacity
4.8gal
Rear Axle/Diff Fluid Capacity
4.8gal
Static Tipping Weight
14330lb
Turning Radius
17.7ft in
Operating Voltage
24V
Alternator Supplied Amperage
50amps
Rear Axle Oscillation
22degrees
Tire Size
17.5-25
Transmission
Transmission Type
auto power-shift
Number Of Forward Gears
4
Number Of Reverse Gears
3
Max Speed - Forward
21.5mph
Max Speed - Reverse
14mph
Hydraulic System
Relief Valve Setting
2845psi
Pump Flow Capacity
37gal/min
Raise Time
6sec
Dump Time
1.5sec
Lower Time
3.1sec
Pump Type
gear type
