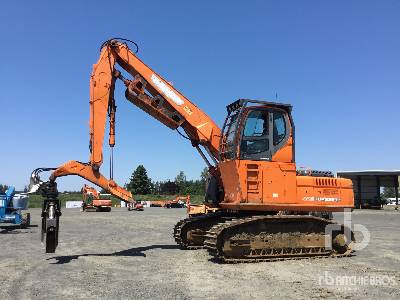

Doosan S225LL Log Loader
Units
Dimensions
Boom/Stick Option (Lgl) 1
A
Shipping Length
16.43ft in
C
Shipping Height
14.85ft in
Boom/Stick Option (Lgl) 1
Boom 20'2" (6150mm)/Stick 12'0" (3660mm)
Max Lift Capacity Over Front At Ground Level
26480lb
Dimensions
B
Overall Width
11.49ft in
D
Length Of Track On Ground
11.96ft in
E
Ground Clearance
2.27ft in
H
Tail Swing Radius
9.03ft in
Undercarriage
Max Speed
3.36mph
Shoe Size
23.63in
Specifications
Engine
Engine Make
2252
Engine Model
DB58TIS
Net Power
148hp
Power Measured @
2000rpm
Operational
Operating Weight
60500lb
Swing Mechanism
Swing Speed
12rpm
Hydraulic
Pump Type
axial piston
Pump Flow Capacity
112.1gal/min
Relief Valve Pressure
4690psi
