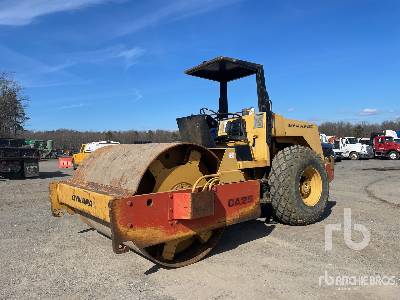

Dynapac CC2300 Vibratory Smooth Drum Roller
Units
Dimensions
Dimensions
A
Overall Length
176.78in
B
Overall Width
5.32ft in
C
Height To Top Of Cab
9.81ft in
D
Wheelbase
131.5in
E
Ground Clearance
10.63in
Gradeability
39%
Turning Radius - Inside
16.64ft in
Turning Radius - Outside
21.56ft in
Curb Clearance
28.15in
Specifications
Engine
Engine Make
Deutz
Engine Model
TCD 3.6 HT
Engine Type
Water cooled turbo Diesel
Gross Power
73.8hp
Power Measured @
2200rpm
Operational
Operating Weight Rops
18739.3lb
Oscillating Angle
7degrees
Operating Weight
20723.5lb
Fuel Capacity
34.4gal
Max Speed
7.5mph
Steering Angle
32degrees
Drum
Drum Thickness
0.7in
Drum Width
59.1in
Drum Diameter
45.3in
Static Linear Load
158.5lb/in
Vibration Frequency 1
48Hz
Nominal Amplitude - High
0.1in
Vibration Frequency 2
67Hz
Nominal Amplitude - Low
0.1in
Centrifugal Force - High
16186.3lb
Centrifugal Force - Low
13263.8lb
