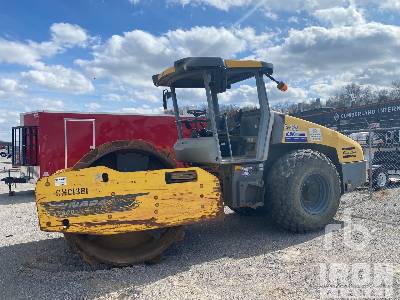

Dynapac CC425 Vibratory Smooth Drum Roller
Units
Dimensions
Dimensions
A
Overall Length
170.87in
B
Overall Width
6.19ft in
C
Height To Top Of Cab
10.04ft in
D
Wheelbase
109.65in
E
Ground Clearance
11.11in
Gradeability
39%
Turning Radius - Outside
21.33ft in
Curb Clearance
14.57in
Specifications
Engine
Engine Make
Kirloskar
Engine Model
4R1040TC
Engine Type
Turbo charged, intercooler, BSIII Diesel Engine
Gross Power
76hp
Power Measured @
2200rpm
Operational
Oscillating Angle
7degrees
Operating Weight
21274.7lb
Fuel Capacity
66.1gal
Water Spray Tank Fluid Capacity
251gal
Max Speed
7.5mph
Steering Angle
28degrees
Drum
Drum Thickness
0.7in
Drum Width
66.6in
Drum Diameter
48.1in
Static Linear Load
159.1lb/in
Vibration Frequency 1
36Hz
Nominal Amplitude - High
0.1in
Vibration Frequency 2
54Hz
Nominal Amplitude - Low
0.1in
Centrifugal Force - High
29225.2lb
Centrifugal Force - Low
13488.6lb
