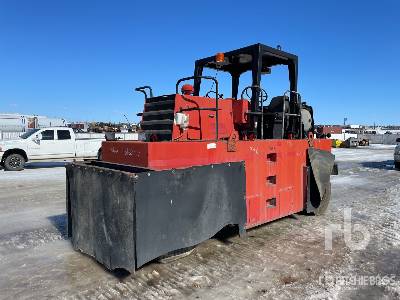

Dynapac CP22 Pneumatic Roller
Units
Dimensions
Dimensions
A
Overall Length
16.25in
B
Overall Width
5.98ft in
C
Height To Top Of Rops
8.8ft in
D
Wheelbase
12.46ft in
E
Ground Clearance
0.76ft in
Specifications
Engine
Number Of Cylinders
6
Engine Make
2345
Engine Model
OM-366
Net Power
100.6hp
Power Measured @
2500rpm
Operational
Fuel Capacity
40.7gal
Water Spray Tank Fluid Capacity
97.8gal
Max Speed
18.1mph
Operating Voltage
12V
Weights
Operating Weight - Standard
17769.3lb
Operating Weight - Max Ballast
46297.1lb
Average Weight Per Wheel - Standard
2537.6lb
Average Weight Per Wheel - Max Ballast
6613.9lb
Tires
Number Of Tires - Front
3
Number Of Tires - Rear
4
Standard Tire Size
11.00X20-18ply
Wheel Track/Tire Overlap
1.7in
