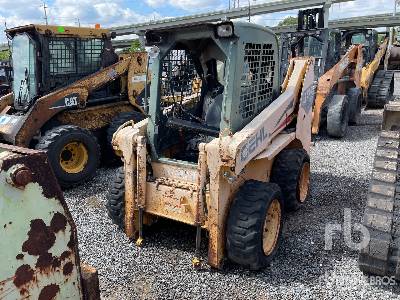

Gehl 4840 Skid Steer Loader
Units
Dimensions
Dimensions
A
Length With Bucket
10.53ft in
B
Width Over Tires
5.3ft in
E
Ground Clearance
7.52in
C
Height To Top Of Cab
6.5ft in
D
Wheelbase
3.46ft in
F
Length W/O Bucket
7.78ft in
G
Clearance At Max Lift And Dump
7.46ft in
H
Reach At Max Lift And Dump
27.6in
Turning Radius From Center - Machine Rear
30.75in
Turning Radius From Center - Inc Bucket
38in
Specifications
Engine
Engine Make
2349
Engine Model
F4M2011
Net Power
60hp
Power Measured @
2500rpm
Displacement
190cu in
Operational
Operational Weight
6480lb
Fuel Capacity
14.8gal
Max Speed
8.1mph
Hydraulic System Fluid Capacity
11.9gal
Tire Size
10.00x16.5 HD
Operating Voltage
12V
Alternator Supplied Amperage
95amps
Loader
Operating Load Rating
1700lb
Tipping Angle
3400degrees
Hydraulic
Pump Flow Capacity
19gal/min
