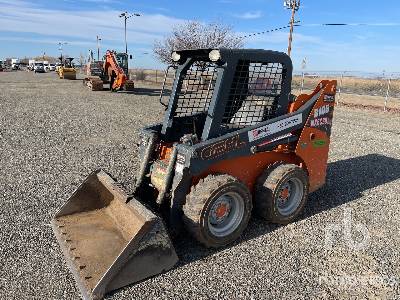

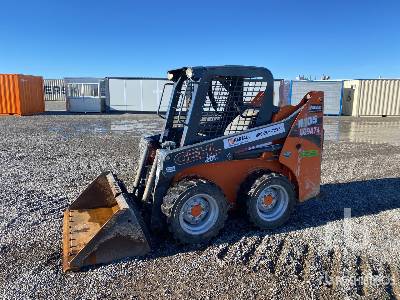

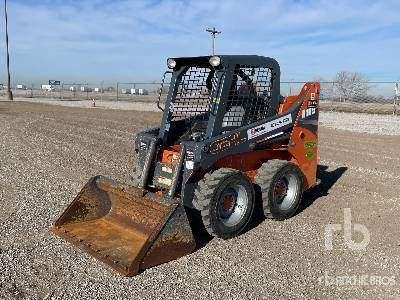

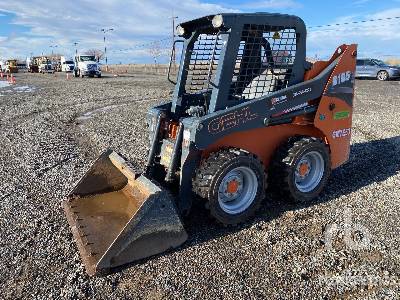

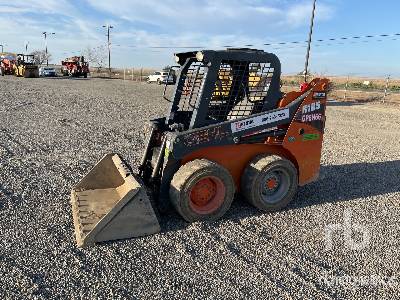

Gehl 5640E Skid Steer Loader
Units
Dimensions
Dimensions
A
Length With Bucket
10.92ft in
B
Width Over Tires
5.59ft in
E
Ground Clearance
8in
C
Height To Top Of Cab
6.75ft in
D
Wheelbase
3.55ft in
F
Length W/O Bucket
7.96ft in
G
Clearance At Max Lift And Dump
7.8ft in
H
Reach At Max Lift And Dump
32.8in
Turning Radius From Center - Machine Rear
33.06in
Turning Radius From Center - Inc Bucket
41.01in
Specifications
Engine
Number Of Cylinders
4
Engine Make
2349
Engine Model
F4M2011
Net Power
82hp
Power Measured @
2500rpm
Displacement
190cu in
Operational
Operational Weight
7380lb
Fuel Capacity
19.1gal
Hydraulic System Fluid Capacity
15.9gal
Max Speed
12.4mph
Tire Size
12.00x16.5 HD
Operating Voltage
12V
Alternator Supplied Amperage
95amps
Loader
Operating Load Rating
2050lb
Tipping Angle
4100degrees
Bucket Capacity
0.8yd3
Hydraulic
Pump Flow Capacity
23gal/min
