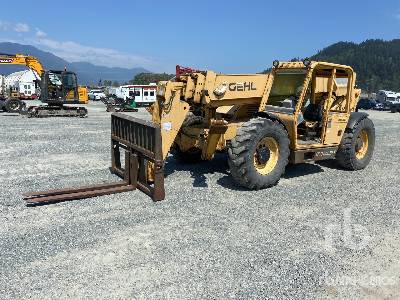

Gehl CT5-16 Telescopic Forklift
Units
Dimensions
Dimensions
E
Ground Clearance
11.42ft in
B
Width Over Tires
5.91ft in
C
Overall Height
6.57ft in
Turning Radius Outside Tires
10.83ft in
Lift
F
Max Lift Height
16.18ft in
G
Max Forward Reach
9.68ft in
Max Load At Max Reach
2200lb
Max Load At Max Height
5000lb
Max Lift Capacity
5000lb
Specifications
Engine
Number Of Cylinders
3
Engine Make
2351
Engine Model
1103-C33
Gross Power
58hp
Power Measured @
1400rpm
Max Torque
164lb ft
Displacement
201cu in
Operational
Operating Weight
11556lb
Fuel Capacity
24.9gal
Hydraulic System Fluid Capacity
27.1gal
Drawbar Pull
7644lb
Tire Size
12x18 SGI 12PR
Transmission
Transmission Type
hydrostatic
Number Of Forward Gears
1
Number Of Reverse Gears
1
Max Speed - Forward
16mph
Max Speed - Reverse
16mph
Hydraulic
Pump Type
gear
Pump Flow Capacity
23gal/min
Relief Valve Pressure
3336psi
