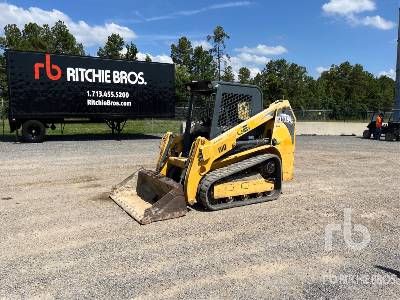

Gehl RT175 Multi Terrain Loader
Units
Dimensions
Dimensions
B
Width Over Tracks
5.37ft in
C
Height To Top Of Cab
6.9ft in
E
Ground Clearance
13.51in
G
Clearance At Max Lift And Dump
8.17ft in
H
Reach At Max Lift And Dump
2.88ft in
Turning Radius From Center - Inc Bucket
91.42in
Length With Bucket
12.01ft in
Length With Out Bucket
9.24ft in
Turning Radius From Center - Machine Rear
62.09in
Undercarriage
D
Length Of Track On Ground
4.57ft in
I
Track Gauge
4.31ft in
Number Of Track Rollers Per Side
4
Width Of Track
12.6in
Ground Pressure
6.2psi
Specifications
Engine
Number Of Cylinders
4
Engine Make
2348
Engine Model
4TNV98-ZNTBL
Net Power
68.4hp
Power Measured @
2500rpm
Peak Torque
179lb ft
Torque Measured @
1600rpm
Displacement
203cu in
Aspiration
Natural
Operational
Operating Weight
8605lb
Cooling System Fluid Capacity
3.6gal
Fuel Capacity
24.4gal
Hydraulic System Fluid Capacity
11gal
Operating Voltage
12V
Max Speed - Low Range
5.1mph
Max Speed - High Range
7.6mph
Loader
Operating Load
1750lb
Tipping Angle
5000degrees
Bucket Width
66in
Hydraulic
Pump Flow
18.5gal/min
