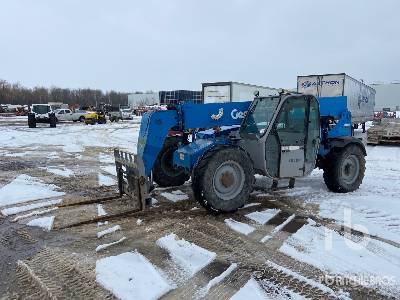

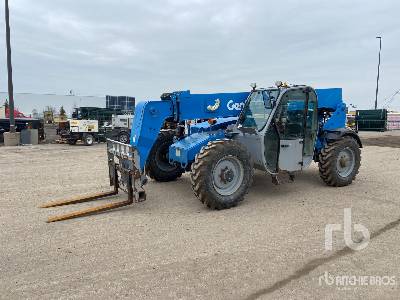

Genie GTH-1256 Telescopic Forklift
Units
Dimensions
Dimensions
A
Length To Fork Face
21ft in
E
Ground Clearance
1.25ft in
C
Overall Height
8.9ft in
D
Wheelbase
11.6ft in
Overall Width
7.11ft in
Weight
36601.15lb
Lift
F
Max Lift Height
56.01ft in
Max Lift Capacity
12015.2lb
Lift Capacity At Max - Reach
3500.95lb
Lift Capacity At Max - Height
7165.03lb
Specifications
Engine
Power
Deutz TCD3.6 turbocharged diesel
Emission Tier Level
T4f
Electrical System
System voltage 12 volt
Battery
1000 CCA at 0˚F (-18˚C)
Engine Model
GTH™ -1256
Gross Power
134hp
Capacities
Hydraulic Tank - Total System
77gal
Fuel Tank
47gal
Hydraulic Tank
48gal
Operational
Retract
15sec
Extend
22sec
Fork Cross Section
354.4in
Turning Radius - Axle Outside
11.7ft in
Drive Speed
18mph
Drawbar Pull
22500lb
Tire Size
17.5 x 25 in. Air filled 20PR
Hydraulic
Auxiliary Hydraulic Flow
15gal/min
Auxiliary Hydraulic Pressure
3335psi
