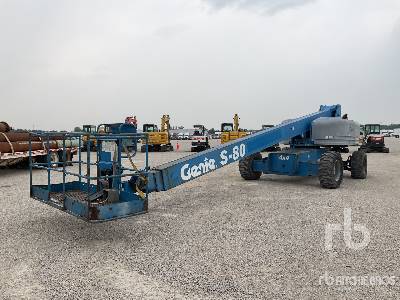

Genie S-80 HF Boom Lift
Units
Dimensions
Dimensions
A
Overall Length
442.13in
B
Overall Width
8.6ft in
D
Wheelbase
9.4ft in
E
Ground Clearance
15.8in
Gradeability
45%
Overall Height
9.2ft in
Weight
35501.04lb
Weight - 2wd
35399.63lb
Platform
Platform Inner Length
35.83in
Platform Inner Width
96.07in
Platform Rotation
160degrees
Specifications
Engine
Power
74 hp (55 kW) Deutz turbo diesel, Tier 4i, TD2011L04i
Engine Model
S-80 HF
Capacities
Fuel Tank - Gas
30gal
Max . Lift Capacity - Restricted
1000lb
Max . Lift Capacity - Understricted
600lb
Auxiliary Power Unit
12V DC
Fuel Tank - Diesel
35gal
Hydraulic Tank
40gal
Operational
Drive Speed - Raised
0.5mph
Controls
12V DC proportional
Turning Radius - Axle Outside
21.5ft in
Turning Radius - Axle Inside
12.1ft in
Drive Speed - Stowed
3mph
Below Ground Reach
5.6ft in
Working Height - Maximum
86ft in
Horizontal Reach - Maximum
68.6ft in
Platform Height - Maximum
80ft in
Tires
Air filled 41/18LL x 22.5, 20 ply
