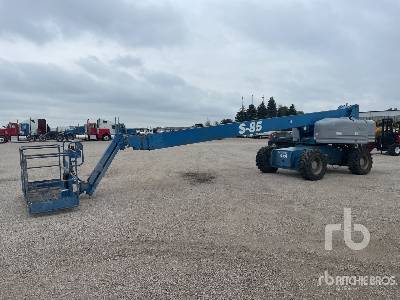

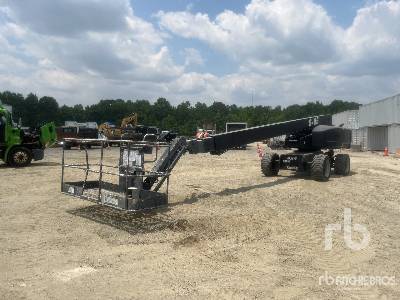

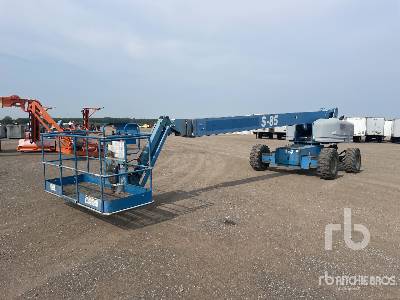

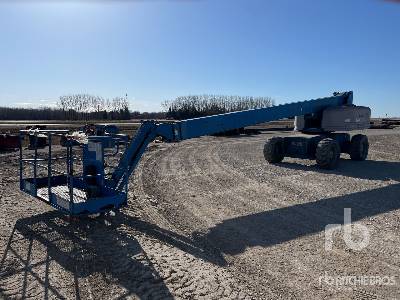

Genie S-85 XC Boom Lift
Units
Dimensions
Dimensions
A
Overall Length
487.01in
B
Overall Width
8.2ft in
D
Wheelbase
9.4ft in
E
Ground Clearance
15.8in
Gradeability
45%
Overall Height
9.2ft in
Weight - 4wd
39500.23lb
Platform
Platform Rotation
160degrees
Platform Inner Length
35.83in
Platform Inner Width
29.93in
Specifications
Engine
Power
74 hp (55 kW) Deutz turbo diesel
Emission Tier Level
Tier 4f
Engine Model
S-85 XC
Capacities
Fuel Tank - Gas
30gal
Max . Lift Capacity - Restricted
1000lb
Max . Lift Capacity - Understricted
660lb
Auxiliary Power Unit
12 V DC
Fuel Tank - Diesel
35gal
Hydraulic Tank
40gal
Operational
Drive Speed - Raised
0.5mph
Controls
12V DC proportional
Turning Radius - Axle Outside
21.5ft in
Turning Radius - Axle Inside
12.1ft in
Drive Speed - Stowed
3mph
Below Ground Reach
8.7ft in
Working Height - Maximum
91.1ft in
Horizontal Reach - Maximum
74.6ft in
Platform Height - Maximum
85.1ft in
Tires
Foam filled 18-625, 16 ply
