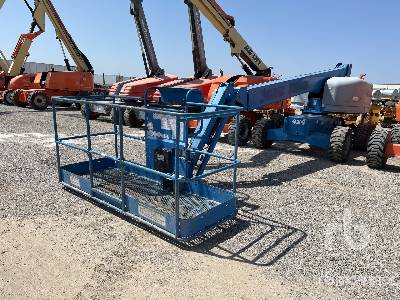

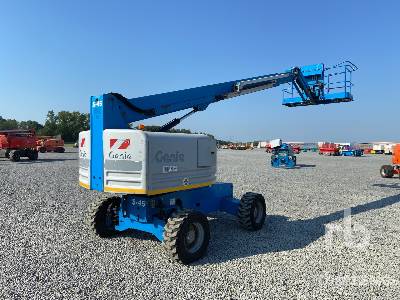

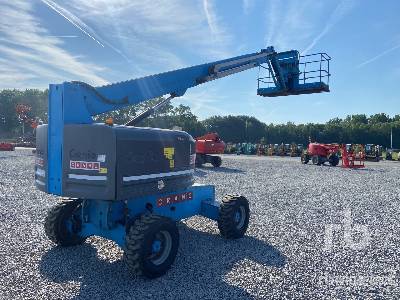

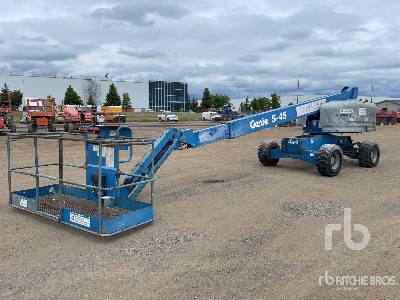

Genie S45 Boom Lift
Units
Dimensions
Dimensions
A
Overall Length
333.86in
B
Overall Width
7.55ft in
C
Overall Height - Mast Lowered
8.17ft in
D
Wheelbase
7.22ft in
E
Ground Clearance
12.6in
Turning Radius
15.69ft in
Weight
15269.22lb
Platform
F
Max Platform Height
45.02ft in
G
Max Horizontal Reach
36.49ft in
Platform Inner Width
96.07in
Max Platform Weight Capacity
500.45lb
Platform Inner Length
35.83in
Max Working Height
51.58ft in
Platform Rotation
160degrees
Specifications
Engine
Power
49 hp (36.54 kW) Deutz diesel T4f D2.9L4
Engine Make
2380
Engine Model
DSG 423
Gross Power
75hp
Fuel Type
Gas/LPG
Capacities
Auxiliary Power Unit
12 V DC
Lift Capacities
500.5lb
Operational
Turning Radius - Axle Inside
6.6ft in
Controls
12 V DC proportional
Turning Radius - Axle Outside
15.7ft in
Drive Speed - Stowed
4.8mph
Drive Speed - Raised
0.7mph
Below Ground Reach
5ft in
Operating Weight
14790.9lb
Fuel Capacity
20.1gal
Hydraulic System Fluid Capacity
45gal
Max Speed
4.8mph
Tire Size
12-16.5 NHS
