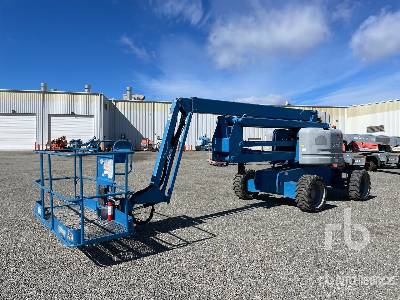

Genie Z45/25RT Boom Lift
Units
Dimensions
Dimensions
A
Overall Length
18.25in
B
Overall Width
7.52ft in
C
Overall Height - Mast Lowered
6.93ft in
D
Wheelbase
6.67ft in
E
Ground Clearance
15.36in
Turning Radius
14.77ft in
Platform
F
Max Platform Height
45.94ft in
G
Max Horizontal Reach
25ft in
Platform Rotation
180degrees
Platform Inner Length
72.05in
Max Platform Weight Capacity
500.45lb
Max Working Height
52.5ft in
Platform Inner Width
29.93in
Specifications
Engine
Engine Make
2380
Engine Model
DSG-423
Gross Power
75hp
Operational
Operating Weight
13675.3lb
Fuel Capacity
17.1gal
Hydraulic System Fluid Capacity
24gal
Max Speed
5mph
Tire Size
355/55 D625
