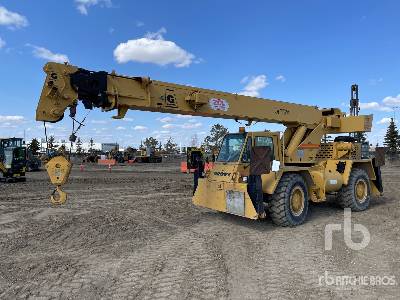

Grove RT58D Rough Terrain Crane
Units
Dimensions
Boom
I
Min Height @ Max Raise Angle
25ft in
J
Max Height @ Max Raise Angle - No Jib
60ft in
K
Min Operating Radius
10ft in
M
Max Elevating Angle
75degrees
L
Max Operating Radius
55ft in
Number Of Sections
3
Max Lift Capacity
40000lb
Swing Speed
2.9rpm
Dimensions
A
Transport Length
30.42ft in
B
Transport Width
8ft in
C
Transport Height
10.5ft in
D
Wheelbase
10.09in
E
Ground Clearance
1.09ft in
F
Width W/ Outriggers Extended
15.92ft in
G
Carrier/Base Length
19.09ft in
H
Upper Structure Tail Swing Radius
8.42ft in
Specifications
Engine
Engine Make
2347
Engine Model
BT5.9L
Gross Power
124.8hp
Power Measured @
2800rpm
Max Torque
325.3lb ft
Torque Measured @
1700rpm
Displacement
360.1cu in
Aspiration
turbocharged
Operational
Operating Weight
44120lb
Fuel Capacity
60gal
Operating Voltage
12V
Tire Size
17.5X25-20PR
Transmission
Transmission Type
remote mounted powershift
Number Of Forward Gears
6
Number Of Reverse Gears
6
Max Speed - Forward
23.7mph
