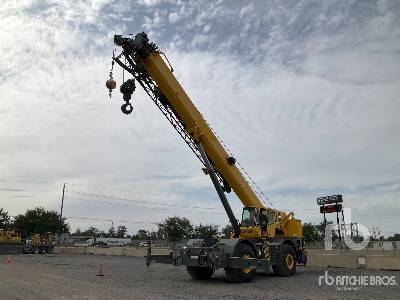

Grove RT875 Rough Terrain Crane
Units
Dimensions
Boom
I
Min Height @ Max Raise Angle
36.09ft in
J
Max Height @ Max Raise Angle - No Jib
113.85ft in
M
Max Elevating Angle
80degrees
Swing Speed
2rpm
Number Of Sections
4
Dimensions
A
Transport Length
45.46ft in
B
Transport Width
12.09ft in
C
Transport Height
12.8ft in
D
Wheelbase
170in
E
Ground Clearance
1.91ft in
F
Width W/ Outriggers Extended
26.01ft in
G
Carrier/Base Length
27916.67ft in
H
Upper Structure Tail Swing Radius
14.19ft in
Specifications
Engine
Number Of Cylinders
6
Engine Make
Cummins
Engine Model
6CTA
Gross Power
249.5hp
Power Measured @
2500rpm
Max Torque
650lb ft
Torque Measured @
1800rpm
Displacement
506.5cu in
Aspiration
Turbocharged
Operational
Operating Weight
111862.6lb
Fuel Capacity
100.2gal
Hydraulic System Fluid Capacity
225.1gal
Operating Voltage
24V
Tire Size
29.5 x 25 - 28 PR
Transmission
Transmission Type
full powershift
Number Of Forward Gears
6
Number Of Reverse Gears
6
Max Speed - Forward
18.8mph
