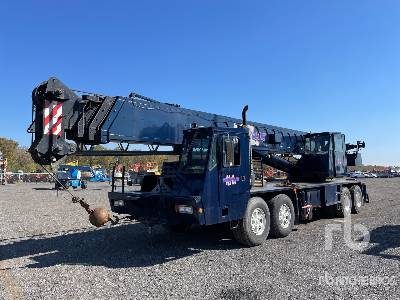

Grove TMS300B Hydraulic Truck Crane
Units
Dimensions
Boom
I
Min Height @ Max Raise Angle
34ft in
J
Max Height @ Max Raise Angle - No Jib
104ft in
K
Min Working Radius
10ft in
L
Max Working Radius
100ft in
M
Max Elevating Angle
76degrees
Max Lift Capacity
82673.35lb
Swing Speed
2.6rpm
Number Of Sections
4
Dimensions
A
Transport Length
43.9ft in
B
Transport Width
8ft in
C
Transport Height
10.82ft in
E
Ground Clearance
0.8ft in
F
Width W/ Outriggers Extended
20.5ft in
G
Carrier Length
36.32ft in
H
Upper Structure Tail Swing Radius
10.8ft in
Specifications
Upper Structure Engine
Make
Grove
Carrier Engine
Make
Grove
Model
6-71N
Gross Power
230.7hp
Power Measured @
2100rpm
Max Torque
611lb ft
Torque Measured @
1600rpm
Displacement
426cu in
Number Of Cylinders
6
Operational
Operating Weight
72627lb
Number Of Axels
4
Carrier Fuel Capacity
90gal
Upper Structure Hydraulic System Fluid Capacity
127gal
Operating Voltage
24V
Tire Size
front 15.00x22.5-16PR rear 11.00x20-14PR
Transmission
Transmission Type
Manual
Number Of Forward Gears
13
Number Of Reverse Gears
3
Max Speed - Forward
51.5mph
