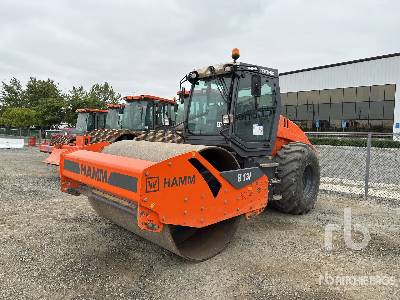

Hamm H13i P Vibratory Compactor
Units
Dimensions
Dimensions
C
Height To Top Of Cab
9.72ft in
D
Wheelbase
124.02in
E
Ground Clearance
15.36in
Turning Radius - Inside
12.7ft in
Overall Width
7.5ft in
Overall Length
19.2ft in
Drum
F
Drum Diameter
66.3in
Pad Height
3.94in
Vibration Frequency 1
30Hz
Vibratory Frequency 2
36Hz
Nominal Amplitude - Low
0.04in
Centrifugal Force - Low
37318.29lb
Drum Thickness
0.79in
Drum Width
84.26in
Nominal Amplitude - High
0.07in
Centrifugal Force - High
55977.43lb
Number Of Pads
140
Specifications
Engine
Emissions Level
EU Stage IV / EPA Tier 4
Engine Make
DEUTZ
Engine Model
TCD 4.1 L4
Gross Power
154.3hp
Net Power
154.3hp
Power Measured @
2300rpm
Operational
Smooth Drum Operating Weight With Cab
30159.3lb
Def Tank Capacity
8.5gal
Operating Weight Rops
29586.1lb
Oscillating Angle
10degrees
Operating Weight
33532.4lb
Fuel Capacity
74gal
Max Speed
7.5mph
Tires
TR 23.1-26 12 PR
