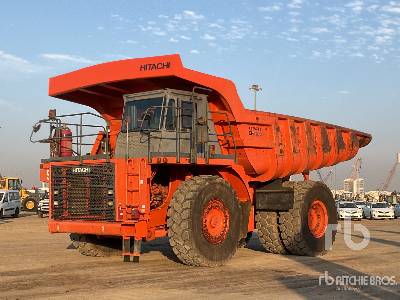

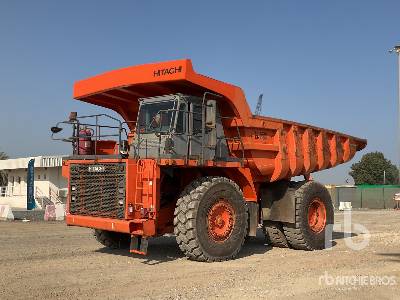

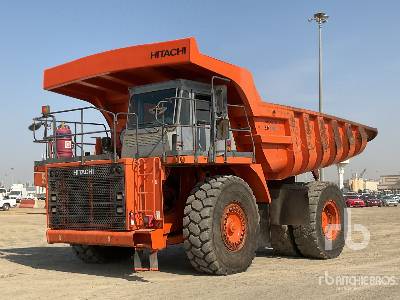

Hitachi EH750-2 Rock Truck
Units
Dimensions
Dimensions
A
Overall Length
28.45ft in
B
Overall Width
15.62ft in
C
Overall Height
14.34ft in
D
Wheelbase
12.41ft in
E
Ground Clearance
1.68ft in
F
Dump Height
26.81ft in
G
Dump Ground Clearance
1.55ft in
Dump
H
Dump Angle
60degrees
Load Capacity - Struck
27.21yd3
Load Capacity - Heaped
36.24yd3
Rated Payload
85000lb
Lower Time
14sec
Raise Time
13.9sec
Specifications
Engine
Number Of Cylinders
6
Engine Make
2347
Engine Model
QSX15-525
Gross Power
525hp
Net Power
480hp
Power Measured @
2100rpm
Displacement
915.4cu in
Aspiration
turbocharged/aftercooled
Operational
Fuel Capacity
120gal
Cooling System Fluid Capacity
42.1gal
Engine Oil Capacity
16.2gal
Diff And Final Drive Fluid Capacity
13.3gal
Steering System Fluid Capacity
25.7gal
Brake/Hoist System Fluid Capacity
47.1gal
Operating Voltage
24V
Alternator Supplied Amperage
75amps
Tire Size
18R33(**)E4 Radial
Transmission
Transmission Type
Allison M5610A planeatary, full automatic
Number Of Gears - Forward
6
Number Of Gears - Reverse
2
Max Speed
42.4mph
Weights
Empty Weight
78043.7lb
Loaded Weight
166228.6lb
Weight Distribution Front - Empty
50%
Weight Distribution Rear - Empty
50%
Weight Distribution Front - Loaded
33%
Weight Distribution Rear - Loaded
67%
