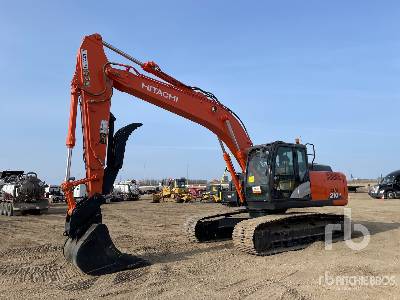

Hitachi ZX210LC-6 Hydraulic Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
I
Max Cutting Height
32.11ft in
K
Max Reach Along Ground
32ft in
L
Max Vertical Wall Digging Depth
19.8ft in
M
Max Digging Depth
21.11ft in
Bucket Digging Force - Sae
31698lb
Arm Digging Force - Iso
25628lb
Arm Digging Force - Sae
24729lb
Boom/Stick Option (Hex) 1
2.91 m (9 ft. 7 in.)
Bucket Digging Force - Iso
35520lb
Max.Dumping Height
23.7ft in
Minimum Swing Radius
12.52in
Dimensions
E
Ground Clearance
1.48ft in
F
Track Gauge
7.1ft in
O
Counterweight Clearance
3.38ft in
Center To Center – Idler To Sprocket
12ft in
Cab Height
9.81in
Overall Length
32ft in
Overall Height
10.5ft in
Overall Width
10.6in
Undercarriage Overall Length
14.8ft in
Undercarriage
Drawbar Pull
45636lb
Number Of Carrier Rollers Per Side
2
Number Of Shoes Per Side
49
Number Of Track Rollers Per Side
7
Track Adjustment
Hydraulic
Specifications
Engine
Emission Tier Level
EPA Final Tier 4
Battery
2
Number Of Cylinders
4
Off-Level Capacity
70%
Engine Model
4HK1
Net Power
160hp
Power Measured @
2000rpm
Displacement
316.8cu in
Aspiration
Turbocharged, air-to-air charge-air cooler
Alternator
50amps
Operational
Swing Gearbox
1.7gal
Propel Gearbox (Each)
2.1gal
Fuel Capacity
106.5gal
Cooling System Fluid Capacity
7.4gal
Hydraulic System Fluid Capacity
63.5gal
Engine Oil Capacity
6.1gal
Hydraulic Pump Flow Capacity
35.7gal/min
Performance
Travel Speed Low
2.2mph
Travel Speed - High
3.5mph
Swing Mechanism
Swing Speed
13.3rpm
Swing Torque
50818.1lb ft
Hydraulic System
Pilot Pump - Maximum Flow
8gal/min
Max. Pressure Setting
580psi
Implement - Operating Pressure
4975psi
Travel - Operating Pressure
5149psi
Swing - Operating Pressure
4830psi
Power Boost - Operating Pressure
5511psi
Controls
Pilot levers, short-stroke, low-effort hydraulic pilot controls with shutoff lever
