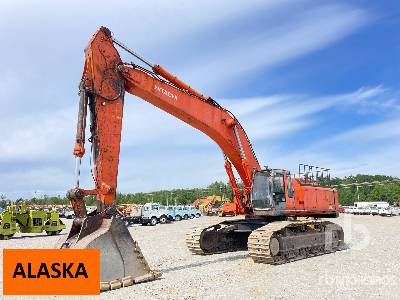

Hitachi ZX800 Hydraulic Excavator
Dimensions
Boom/Stick Option (Hex) 1
Shipping Length Of Unit
46.99ft in
Shipping Height Of Unit
14.7ft in
Max Cutting Height
38.33ft in
Max Loading Height
25.66ft in
Max Reach Along Ground
40.72ft in
Max Vertical Wall Digging Depth
14.24ft in
Max Digging Depth
23.76ft in
Boom/Stick Option (Hex) 1
Boom 7100mm (23\' 4\'\') / Stick 2950mm (9\' 8\'\')
Boom/Stick Option (Hex) 2
Shipping Length Of Unit
46.99ft in
Max Cutting Height
41.11ft in
Shipping Height Of Unit
14.7ft in
Max Loading Height
27.99ft in
Max Reach Along Ground
45.9ft in
Max Vertical Wall Digging Depth
25.56ft in
Max Digging Depth
29.14ft in
Boom/Stick Option (Hex) 2
Boom 8250mm (27\' 1\'\') / Stick 3600mm (11\' 10\'\')
Boom/Stick Option (Hex) 3
Shipping Length Of Unit
46.99ft in
Max Cutting Height
43.67ft in
Max Loading Height
30.22ft in
Shipping Height Of Unit
14.7ft in
Max Reach Along Ground
48.79ft in
Max Vertical Wall Digging Depth
29.43ft in
Max Digging Depth
31.73ft in
Boom/Stick Option (Hex) 3
Boom 8250mm (27\' 1\'\') / Stick 4400mm (14\' 5\'\')
Boom/Stick Option (Hex) 4
Shipping Length Of Unit
46.99ft in
Shipping Height Of Unit
14.7ft in
Max Cutting Height
44.36ft in
Max Loading Height
32.06ft in
Max Reach Along Ground
51.51ft in
Max Digging Depth
34.62ft in
Max Vertical Wall Dig Depth
30.19ft in
Boom/Stick Option (Hex) 4
Boom 8250mm (27\' 1\'\') / Stick 5400mm (17\' 9\'\')
Boom/Stick Option (Hex) 5
Shipping Length Of Unit
46.99ft in
Shipping Height Of Unit
14.7ft in
Max Cutting Height
47.54ft in
Max Loading Height
35.41ft in
Max Reach Along Ground
57.22ft in
Max Digging Depth
39.57ft in
Max Vertical Wall Dig Depth
33.96ft in
Boom/Stick Option (Hex) 5
Boom 10000mm (32\' 10\'\') / Stick 5400mm (17\' 9\'\')
Dimensions
Ground Clearance
2.89ft in
Height To Top Of Cab
11.55ft in
Width To Outside Of Tracks
14.31ft in
Length Of Track On Ground
16.77ft in
Tail Swing Radius
14.11ft in
Removal Counterweight Clearance
5.22ft in
Undercarriage
Track Gauge
11.32ft in
Shoe Size
25.6in
Max Travel Speed
2.68mph
Number Of Track Rollers Per Side
9
Number Of Shoes Per Side
51
Number Of Carrier Rollers Per Side
3
Ground Pressure
14.65psi
Specifications
Engine
Number Of Cylinders
6
Engine Make
2353
Engine Model
BB-6WG1T
Net Power
454hp
Power Measured @
1800rpm
Max Torque
1374.1lb ft
Displacement
957cu in
Aspiration
turbocharged
Torque Measured @
1500rpm
Operational
Operating Weight
162921.7lb
Fuel Capacity
238.1gal
Cooling System Fluid Capacity
28.3gal
Hydraulic System Fluid Capacity
177gal
Operating Voltage
12V
Engine Oil Capacity
14.6gal
Swing Drive Fluid Capacity
4gal
Hydraulic System Relief Valve Pressure
4980psi
Hydraulic Pump Flow Capacity
8gal/min
Swing Mechanism
Swing Speed
8.2rpm
Buckets
Reference Bucket Capacity
4.5yd3
Minimum Bucket Capacity
1.8yd3
Maximum Bucket Capacity
5yd3
