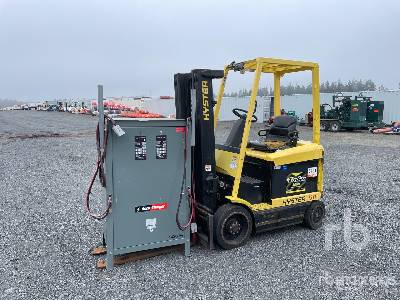

Hyster E50Z (48V) Forklift
Units
Dimensions
Dimensions
A
Length To Fork Face
6.55ft in
B
Overall Width
3.51ft in
C
Overall Height - Mast Lowered
7.01ft in
D
Wheelbase
3.97ft in
E
Ground Clearance
3.59in
F
Height To Top Of Overhead Guard
7.55ft in
G
Max Fork Height
10.92ft in
Right Angle Stack
10.95ft in
Turning Radius
5.71ft in
Mast
H
Mast Tip Forward
5degrees
I
Mast Tip Rear
8degrees
Number Of Mast Sections
2
Lower Speed
100ft/min
Load Center
24in
Load Capacity
4993.47lb
Lift Speed
123ft/min
Specifications
Engine
Fuel Type
Electric
Operational
Operating Weight
9513lb
Tire Type
Cushion
Number Of Front Wheels
2
Number Of Rear Wheels
2
Max Speed
11.4mph
