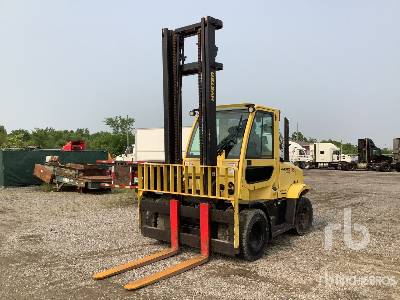

Hyster H155FT LP Forklift
Units
Dimensions
Dimensions
A
Length To Fork Face
12.04ft in
B
Overall Width
6.84ft in
C
Overall Height - Mast Lowered
12.28ft in
D
Wheelbase
7.34ft in
E
Ground Clearance
9.97in
F
Height To Top Of Overhead Guard
8.31ft in
G
Max Fork Height
17.72ft in
Gradeability
27%
Right Angle Stack
13.09ft in
Track Width Front
6.06ft in
Track Width Rear
5.04ft in
Turning Radius
11.12ft in
Mast
H
Mast Tip Forward
5degrees
I
Mast Tip Rear
10degrees
Load Capacity
15432.36lb
Lift Speed
106ft/min
Load Center
24.02in
Lower Speed
81ft/min
Max Fork Spread
73.86in
Specifications
Engine
Number Of Cylinders
6
Engine Make
2374
Engine Model
GM 4.3L
Power
96hp
Torque
210lb ft
Power Measured @
2400rpm
Displacement
263cu in
Torque Measured @
2400rpm
Fuel Type
LP
Operational
Operating Weight
20791.8lb
Tire Type
Pneumatic
Number Of Front Wheels
4
Number Of Rear Wheels
2
Max Speed
15.6mph
Hydraulic System Relief Valve Pressure
2250psi
Hydraulic Tank
18.9gal
Axle Load - Front
9160lb
Axle Load - Rear
11632lb
