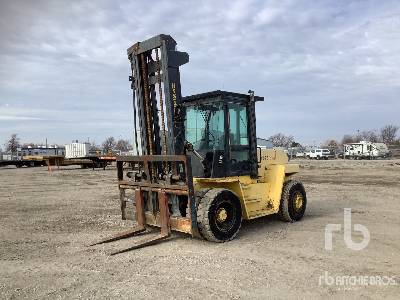

Hyster H30FT DuraMatch Diesel Forklift
Units
Dimensions
Dimensions
A
Length To Fork Face
7.34ft in
B
Overall Width
3.51ft in
C
Overall Height - Mast Lowered
6.98ft in
D
Wheelbase
4.55ft in
E
Ground Clearance
5.2in
F
Height To Top Of Overhead Guard
7.06ft in
G
Max Fork Height
10.61ft in
Turning Radius
6.42ft in
Mast
H
Mast Tip Forward
6degrees
I
Mast Tip Rear
6degrees
Max Fork Spread
37.6in
Lower Speed
100ft/min
Load Center
24.02in
Load Capacity
2998.29lb
Lift Speed
112ft/min
Specifications
Engine
Number Of Cylinders
4
Engine Make
2348
Engine Model
2.6L
Power
40hp
Torque
108lb ft
Displacement
162.3cu in
Torque Measured @
1400rpm
Fuel Type
Diesel
Operational
Operating Weight
9744.5lb
Tire Type
Pneumatic
Number Of Front Wheels
2
Number Of Rear Wheels
2
Max Speed
12.8mph
