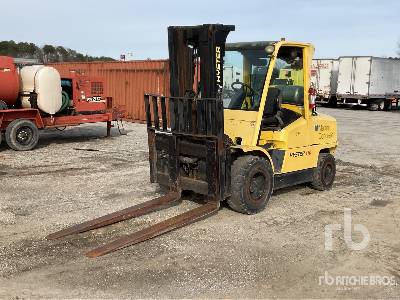

Hyster J110XN Forklift
Units
Dimensions
Dimensions
A
Length To Fork Face
10.26ft in
B
Overall Width
4.77ft in
C
Overall Height - Mast Lowered
7.62ft in
D
Wheelbase
7.16ft in
E
Ground Clearance
5.63in
F
Height To Top Of Overhead Guard
7.68ft in
Gradeability
21.5%
Right Angle Stack
14.38ft in
Turning Radius
8.45ft in
Mast
H
Mast Tip Forward
6degrees
I
Mast Tip Rear
8degrees
Load Center
24.02in
Load Capacity
11001.07lb
Lift Speed
91ft/min
Lower Speed
71ft/min
Specifications
Engine
Engine Make
Hyster
Engine Model
J110XN
Power
19.7hp
Operational
Auxiliary Hydraulic Flow
15.9gal/min
Operating Weight
13931.1lb
Tire Type
Pneumatic Shaped Solid
Number Of Front Wheels
2
Number Of Rear Wheels
2
Max Speed
11.7mph
Drawbar Pull
4020lb
Operating Voltage
80V
Front Tire Size
355/50-15
Rear Tire Size
28 x 9-15
Axle Load - Front
9839.3lb
Axle Load - Rear
9484.3lb
Hydraulic
Relief Valve Pressure
2250psi
Brakes
Service Brake
Hydraulic
Parking Brake
Spring Applied
