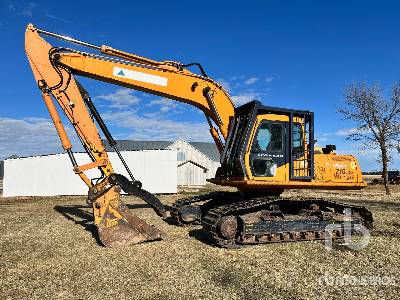

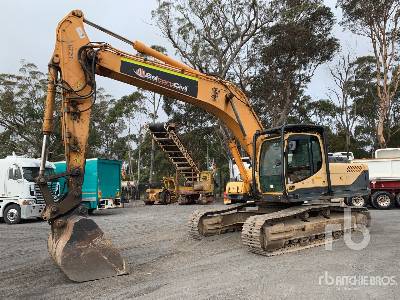

Hyundai R290LC-7A High Chassis Hydraulic Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
A
Shipping Length Of Unit
35.08ft in
C
Shipping Height Of Unit
12.28ft in
I
Max Cutting Height
34.03ft in
J
Max Loading Height
23.76ft in
K
Max Reach Along Ground
31.99ft in
L
Max Vertical Wall Digging Depth
18.71ft in
M
Max Digging Depth
20.15ft in
Boom/Stick Option (Hex) 1
Boom 20'6" (6250mm)/Stick 6'11" (2100mm)
Boom/Stick Option (Hex) 2
A
Shipping Length Of Unit
34.81ft in
I
Max Cutting Height
33.54ft in
C
Shipping Height Of Unit
11.78ft in
J
Max Loading Height
23.53ft in
K
Max Reach Along Ground
32.88ft in
L
Max Vertical Wall Digging Depth
18.25ft in
M
Max Digging Depth
21.46ft in
Boom/Stick Option (Hex) 2
Boom 20'6" (6250mm)/Stick 8'2" (2500mm)
Boom/Stick Option (Hex) 3
A
Shipping Length Of Unit
34.22ft in
I
Max Cutting Height
34.26ft in
J
Max Loading Height
24.28ft in
C
Shipping Height Of Unit
11ft in
K
Max Reach Along Ground
34.55ft in
L
Max Vertical Wall Digging Depth
19.99ft in
M
Max Digging Depth
23.27ft in
Boom/Stick Option (Hex) 3
Boom 20'6" (6250mm)/Stick 10'0" (3050mm)
Boom/Stick Option (Hex) 4
A
Shipping Length Of Unit
34.55ft in
C
Shipping Height Of Unit
11.52ft in
I
Max Cutting Height
34.98ft in
J
Max Loading Height
24.97ft in
K
Max Reach Along Ground
36.62ft in
M
Max Digging Depth
25.56ft in
Boom/Stick Option (Hex) 4
Boom 20'6" (6250mm)/Stick 12'4" (3750mm)
Max Vertical Wall Dig Depth
22.28ft in
Dimensions
E
Ground Clearance
2.51ft in
G
Height To Top Of Cab
11.09ft in
B
Width To Outside Of Tracks
11.39ft in
D
Length Of Track On Ground
13.23ft in
H
Tail Swing Radius
10.5ft in
Removal Counterweight Clearance
4.93ft in
Undercarriage
F
Track Gauge
9.42ft in
N
Shoe Size
23.63in
Number Of Carrier Rollers Per Side
2
Max Travel Speed
3.24mph
Ground Pressure
8.82psi
Number Of Track Rollers Per Side
9
Number Of Shoes Per Side
48
Drawbar Pull
61372.84lb
Specifications
Engine
Number Of Cylinders
6
Engine Make
2347
Engine Model
QSB6.7
Gross Power
227hp
Net Power
197hp
Power Measured @
1900rpm
Max Torque
700lb ft
Displacement
409cu in
Aspiration
turbocharged
Torque Measured @
1400rpm
Operational
Operating Weight
70860lb
Fuel Capacity
126.9gal
Cooling System Fluid Capacity
13.3gal
Hydraulic System Fluid Capacity
84.6gal
Operating Voltage
24V
Engine Oil Capacity
6.4gal
Swing Drive Fluid Capacity
3gal
Alternator Supplied Amperage
50amps
Hydraulic System Relief Valve Pressure
5120psi
Hydraulic Pump Flow Capacity
133.2gal/min
Swing Mechanism
Swing Speed
10.2rpm
Buckets
Reference Bucket Capacity
1.7yd3
Minimum Bucket Capacity
1.1yd3
Maximum Bucket Capacity
2.5yd3
