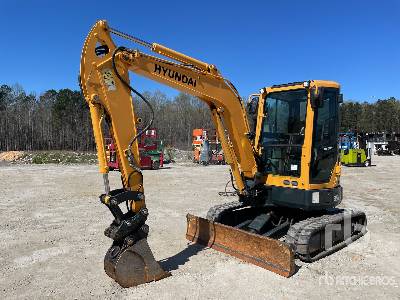

Hyundai R35Z-9A Mini Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
I
Max Cutting Height
15.79ft in
J
Max Loading Height
11.24ft in
K
Max Reach Along Ground
17.07ft in
L
Max Vertical Wall Digging Depth
7.19ft in
M
Max Digging Depth
10.29ft in
Boom/Stick Option (Hex) 1
Boom length mm(ft-in) 2500(8\'2\") Arm length mm(ft-in) 1300(4\'3\")
Boom/Stick Option (Hex) 2
I
Max Cutting Height
16.44ft in
J
Max Loading Height
11.87ft in
K
Max Reach Along Ground
18.02ft in
L
Max Vertical Wall Digging Depth
8.42ft in
M
Max Digging Depth
11.29ft in
Boom/Stick Option (Hex) 2
Boom length mm(ft-in) 2500(8\'2\") Arm length mm(ft-in) 1600(5\'3\")
Dimensions
B
Width To Outside Of Tracks
3.45ft in
D
Length Of Track On Ground
15.8ft in
E
Ground Clearance
0.96ft in
G
Height To Top Of Cab
8.21ft in
H
Tail Swing Radius
2.86ft in
Undercarriage
Max Travel Speed
2.61mph
Drawbar Pull
6835lb
Specifications
Engine
Engine Make
YANMAR
Engine Model
3TNV88F
Gross Power
24.4hp
Net Power
23.7hp
Power Measured @
2200rpm
Displacement
100cu in
Max Torque
100lb ft
Operational
Operating Weight
7826.5lb
Fuel Capacity
10.6gal
Cooling System Fluid Capacity
1.5gal
Hydraulic System Fluid Capacity
9.8gal
Engine Oil Capacity
1.8gal
Operational Voltage
12V
