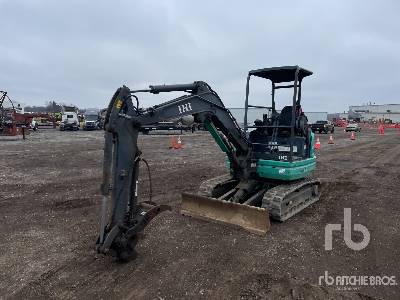

IHI 35N-2 Mini Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
A
Shipping Length Of Unit
15.92ft in
I
Max Cutting Height
15.58ft in
C
Shipping Height Of Unit
7.67ft in
J
Max Loading Height
10.83ft in
L
Max Vertical Wall Digging Depth
8ft in
M
Max Digging Depth
10.33ft in
Dimensions
B
Width To Outside Of Tracks
5.08ft in
G
Height To Top Of Cab
7.67ft in
H
Tail Swing Radius
4.17ft in
Removal Counterweight Clearance
1.08ft in
Undercarriage
N
Shoe Size
14in
F
Track Gauge
3.92ft in
Ground Pressure
4.1psi
Max Travel Speed
3mph
Specifications
Engine
Engine Make
2348
Engine Model
3TNV84
Gross Power
26.5hp
Operational
Operating Weight
7759lb
Fuel Capacity
9.8gal
Hydraulic System Relief Valve Pressure
2988psi
Hydraulic Pump Flow Capacity
27.1gal/min
Swing Mechanism
Swing Speed
8.8rpm
Buckets
Reference Bucket Capacity
0.2yd3
