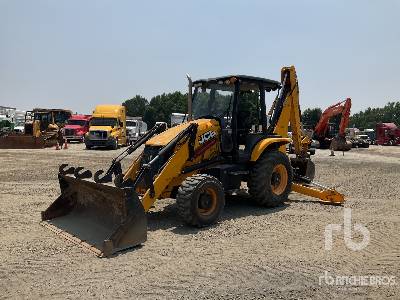

JCB 3CX 14FT (214) Loader Backhoe
Units
Dimensions
Backhoe
J
Load Height - Std
11.16ft in
K
Reach From Swivel - Std
17.85ft in
L
Dig Depth - Std
14.6ft in
M
Reach At Load Height - Std
5.52ft in
Load Height - Ext
14.01ft in
Bucket Dig Force - Ext
5261lb
Bucket Dig Force - Std
5453lb
Dig Depth - Ext
18.48ft in
Reach At Load Height - Ext
9.09ft in
Load At Max Lift - Ext
866lb
Load At Max Lift - Std
1669lb
Reach From Swivel - Ext
21.49ft in
Dimensions
A
Transport Length
23.59ft in
B
Transport Width
8.04ft in
C
Transport Height
11.59ft in
D
Wheelbase
7.26ft in
E
Ground Clearance
1.09ft in
Height To Top Of Suspended Cab
9.42ft in
Loader
G
Clearance At Max Dump Height
8.99ft in
H
Reach At Max Dump Height
2.66ft in
I
Dig Depth
1.97in
Bucket Breakout Force
12638lb
Bucket Width
92.5in
Bucket Capacity
1.4yd3
Lift Capacity At Full Height
6750lb
Specifications
Engine
Number Of Cylinders
4
Engine Make
2257
Engine Model
444
Gross Power
92hp
Net Power
90.1hp
Power Measured @
2200rpm
Torque Measured @
1300rpm
Net Max Torque
281.8lb ft
Aspiration
Turbo
Displacement
268.6cu in
Operational
Operating Weight 2wd
15053lb
Fuel Capacity
42.3gal
Operating Weight 4wd
15439lb
Hydraulic System Fluid Capacity
33.6gal
Oil System Fluid Capacity
4gal
Cooling System Fluid Capacity
6.1gal
Transmission Fluid Capacity
4.3gal
Rear Axle Fluid Capacity
4.3gal
Turning Radius
13.3ft in
Tire Size Front - 2wd / 4wd
11L-16 F3 12 PLY / 14-17.5 FWD 10 PLY
Rear Tires Size 2wd/4wd
19.5L-24 R4 10 PLY / 19.5L-24 R4 10 PLY
Operating Voltage
12V
Alternator Supplied Amperage
95amps
Transmission
Transmission Type
JCB synchroshuttle
Number Of Forward Gears
4
Number Of Reverse Gears
4
Max Speed - Forward
22.5mph
Max Speed Reverse
22.5mph
Hydraulic
Pump Type
dual gear pumps
Pump Flow Capacity
39.1gal/min
Relief Valve Pressure
3300psi
