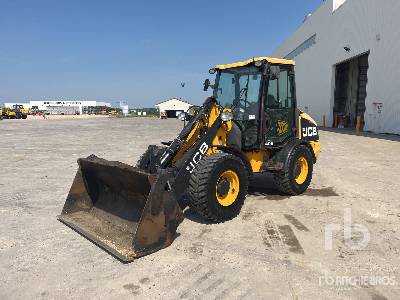

JCB 406 Integrated Tool Carrier
Units
Dimensions
Dimensions
A
Length W/ Bucket On Ground
16.85ft in
B
Width Over Tires
5.78ft in
C
Height To Top Of Cab
8.21ft in
D
Wheelbase
6.89ft in
E
Ground Clearance
1.09ft in
F
Hinge Pin Max Height
10.28ft in
G
Dump Clearance At Max Lift
8.17ft in
K
Max Lift Height
9.89ft in
I
Fork Tine Length
3.94ft in
Reach At Max Height And Dump
2.51ft in
Specifications
Engine
Number Of Cylinders
4
Engine Make
2349
Engine Model
F4L2011
Gross Power
59hp
Net Power
56hp
Power Measured @
2500rpm
Max Torque
140lb ft
Torque Measured @
1700rpm
Displacement
189.7cu in
Aspiration
Naturally Aspirated
Operational
Operating Weight
10877lb
Fuel Capacity
21gal
Engine Oil Capacity
3.1gal
Front Diff Fluid Capacity
1gal
Rear Diff Fluid Capacity
1gal
Hydraulic System Fluid Capacity
18.5gal
Turning Radius
9ft in
Operating Voltage
12V
Alternator Supplied Amperage
80amps
Rear Axle Oscillation
10degrees
Static Tipping Load - Bucket
9458lb
Tire Size
12.5/80 R18 SGL
Transmission
Transmission Type
Hydrostatic
Number Of Forward Gears
2
Number Of Reverse Gears
2
Max Speed Forward
12.5mph
Max Speed Reverse
12.5mph
Hydraulic System
Pump Type
Gear
Relief Valve Setting
3335psi
Pump Flow Capacity
15.9gal/min
Raise Time
4.9sec
Dump Time
3.5sec
Lower Time
3.1sec
Bucket
Breakout Force
9420lb
Bucket Capacity - Heaped
1yd3
