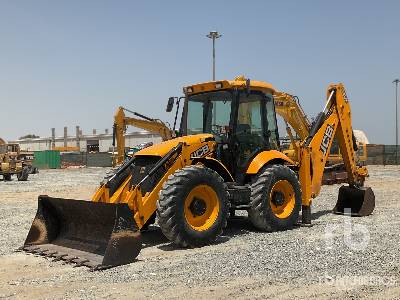

JCB 4CX 15FT (215S) Loader Backhoe
Units
Dimensions
Backhoe
J
Load Height - Std
13ft in
K
Reach From Swivel - Std
19.43ft in
L
Dig Depth - Std
16.25ft in
M
Reach At Load Height - Std
6.5ft in
Load Height - Ext
15.26ft in
Bucket Dig Force - Ext
12209.21lb
Bucket Dig Force - Std
12209.21lb
Dig Depth - Ext
20.08ft in
Reach At Load Height - Ext
10.18ft in
Load At Max Lift - Ext
2799.88lb
Load At Max Lift - Std
4861.2lb
Reach From Swivel - Ext
23ft in
Dimensions
A
Transport Length
24.51ft in
B
Transport Width
7.71ft in
C
Transport Height
12.77ft in
D
Wheelbase
7.58ft in
E
Ground Clearance
1.12ft in
Height To Top Of Suspended Cab
9.42ft in
Loader
G
Clearance At Max Dump Height
8.83ft in
H
Reach At Max Dump Height
2.83ft in
I
Dig Depth
7.88in
Bucket Breakout Force
14567lb
Bucket Width
94in
Bucket Capacity
1.4yd3
Lift Capacity At Full Height
9047.78lb
Specifications
Engine
Number Of Cylinders
4
Engine Make
2257
Engine Model
444
Gross Power
100hp
Net Power
97.6hp
Power Measured @
2200rpm
Torque Measured @
1300rpm
Net Max Torque
307.6lb ft
Aspiration
Turbo
Displacement
268.6cu in
Operational
Operating Weight 2wd
17579lb
Fuel Capacity
42.3gal
Max Weight
18765lb
Hydraulic System Fluid Capacity
33.6gal
Oil System Fluid Capacity
4gal
Cooling System Fluid Capacity
6.1gal
Transmission Fluid Capacity
4.3gal
Front Axle Fluid Capacity
4.3gal
Rear Axle Fluid Capacity
4.3gal
Turning Radius
15.1ft in
Tire Size Front - 2wd / 4wd
16.9-24 R4 12 ply
Rear Tires Size 2wd/4wd
16.9-24 R4 12 ply
Operating Voltage
12V
Alternator Supplied Amperage
95amps
Transmission
Transmission Type
JCB powershift
Number Of Forward Gears
4
Number Of Reverse Gears
4
Max Speed - Forward
22.5mph
Max Speed Reverse
22.5mph
Hydraulic
Pump Type
dual gear pump
Pump Flow Capacity
41gal/min
Relief Valve Pressure
3300psi
