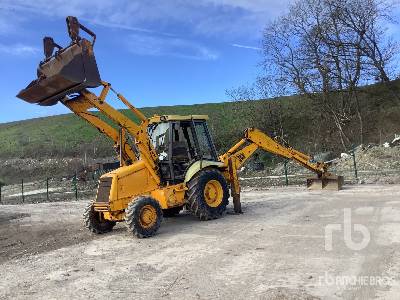

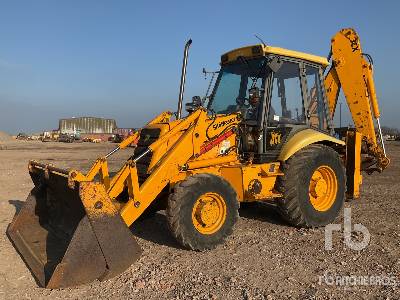

JCB 4CX Super Sitemaster Loader Backhoe
Units
Dimensions
Backhoe
J
Load Height - Std
14.93ft in
K
Reach From Swivel - Std
19.72ft in
L
Dig Depth - Std
16.34ft in
M
Reach At Load Height - Std
11.26ft in
Load Height - Ext
13.33ft in
Bucket Dig Force - Ext
11851lb
Bucket Dig Force - Std
11851lb
Dig Depth - Ext
20.15ft in
Reach At Load Height - Ext
14.67ft in
Load At Max Lift - Ext
2643.35lb
Load At Max Lift - Std
3430.4lb
Reach From Swivel - Ext
23.3ft in
Dimensions
A
Transport Length
19.39ft in
B
Transport Width
7.75ft in
C
Transport Height
12.9ft in
D
Wheelbase
7.29ft in
E
Ground Clearance
1.12ft in
Height To Top Of Suspended Cab
9.45ft in
Loader
G
Clearance At Max Dump Height
8.83ft in
H
Reach At Max Dump Height
3.84ft in
I
Dig Depth
7.09in
Bucket Breakout Force
14498lb
Bucket Width
92.52in
Bucket Capacity
1.31yd3
Lift Capacity At Full Height
9651.84lb
Specifications
Engine
Engine Make
2257
Net Power
97.6hp
Gross Power
100hp
Power Measured @
2200rpm
Torque Measured @
1300rpm
Net Max Torque
307.6lb ft
Aspiration
turbocharged
Displacement
268.6cu in
Operational
Fuel Capacity
42.3gal
Max Weight
19550lb
Hydraulic System Fluid Capacity
34.9gal
Oil System Fluid Capacity
4gal
Cooling System Fluid Capacity
4.9gal
Transmission Fluid Capacity
4.3gal
Front Axle Fluid Capacity
4.3gal
Rear Axle Fluid Capacity
4.3gal
Tire Size Front - 2wd / 4wd
16.9x28 10PR Industrial
Rear Tires Size 2wd/4wd
16.9x28 10PR Industrial
Operating Voltage
12V
Alternator Supplied Amperage
95amps
Transmission
Transmission Type
powershift
Number Of Forward Gears
4
Number Of Reverse Gears
4
Max Speed - Forward
24.9mph
Max Speed Reverse
24.9mph
Hydraulic
Pump Type
open centre systen with twin gear pumps and hydraulic speed control
Pump Flow Capacity
21.4gal/min
Relief Valve Pressure
3650psi
