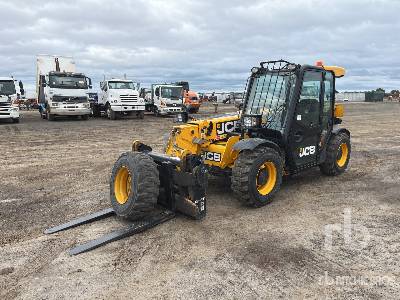

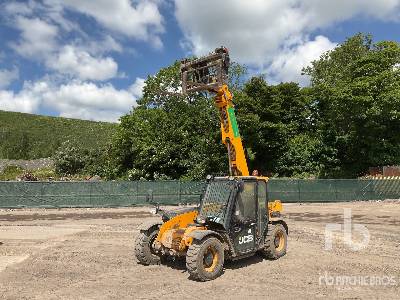

JCB 525-60 AGRI PLUS Telescopic Forklift
Units
Dimensions
Dimensions
E
Ground Clearance
1.09ft in
B
Width Over Tires
6.04ft in
C
Overall Height
6.47ft in
D
Wheelbase
7.85ft in
Weight
11684.5lb
Lift Capacity To Full Height
3858.09lb
Lift
F
Max Lift Height
19.69ft in
G
Max Forward Reach
10.83ft in
Max Lift Capacity
5511.56lb
Specifications
Electrical System
Battery Capacity
120 Ah
Voltage
12 VV
Engine
Number Of Cylinders
4
Engine Model
JCB DIESEL BY KOHLER
Gross Power
73.8hp
Power Measured @
2200rpm
Gross Torque
221.3lb ft
Torque Measured @
1500rpm
Displacement
152.6cu in
Bore
3.5in
Stroke
4.1in
Aspiration
Turbocharged cooled
Capacities
Fuel Tank
19.9gal
Hydraulic System
17.2gal
Transmission
Lift Capacity At Full Reach
1763.7lb
Max Speed - Forward
18.7mph
Max Speed - Reverse
18.7mph
Hydraulic System
Bucket Crowd
2.2sec
Retract
3.3sec
Extend
5.5sec
Raise Time
5.7sec
Dump Time
1.9sec
Lower Time
5.5sec
