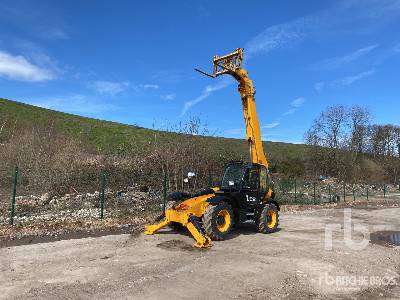

JCB 530-70 Telescopic Forklift
Units
Dimensions
Dimensions
A
Length To Fork Face
16.38ft in
E
Ground Clearance
1.32ft in
B
Width Over Tires
7.32ft in
C
Overall Height
8.17ft in
D
Wheelbase
9.03ft in
Turning Radius Outside Tires
12.14ft in
Lift
F
Max Lift Height
22.97ft in
G
Max Forward Reach
12.14ft in
Max Load At Max Reach
2755.78lb
Max Load At Max Height
5291.1lb
Max Lift Capacity
6613.87lb
Specifications
Engine
Number Of Cylinders
4
Engine Make
2257
Engine Model
444
Gross Power
82.5hp
Power Measured @
2200rpm
Max Torque
227.2lb ft
Torque Measured @
1200rpm
Displacement
268.6cu in
Aspiration
nauturally aspirated
Operational
Operating Weight
6613.9lb
Fuel Capacity
33.1gal
Hydraulic System Fluid Capacity
29.9gal
Operating Voltage
12V
Alternator Supplied Amperage
65amps
Tire Size
15.5/80-24
Transmission
Transmission Type
4-speed powershift
Number Of Forward Gears
4
Number Of Reverse Gears
4
Max Speed - Forward
17.4mph
Max Speed - Reverse
17.4mph
Hydraulic
Pump Flow Capacity
21.7gal/min
Relief Valve Pressure
3500psi
