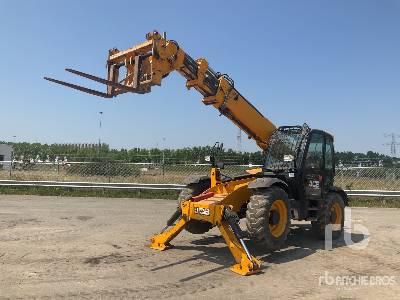

JCB 540-140 HI-VIZ Telescopic Forklift
Units
Dimensions
Dimensions
E
Ground Clearance
1.32ft in
B
Width Over Tires
7.71ft in
C
Overall Height
8.5ft in
D
Wheelbase
9.03ft in
Dump Angle
12.5degrees
Lift Capacity To Full Height
3306.94lb
Weight
23986.3lb
Lift
F
Max Lift Height
65.62ft in
Max Lift Capacity
8818.49lb
Specifications
Engine
Number Of Cylinders
4
Engine Model
JCB EcoMAX T4 Fina
Gross Power
73.8hp
Displacement
268.6cu in
Aspiration
turbocharged cooled
Transmission
Lift Capacity At Full Reach
441lb
Travel Speed
18.1mph
Transmission Type
Hydrostatic
Hydraulic System
Bucket Crowd
2sec
Retract
14.4sec
Extend
15.6sec
Max Operating Pressure
260 bar
Hydraulic Pump
110 L
Raise Time
13.5sec
Dump Time
1.7sec
Lower Time
11sec
