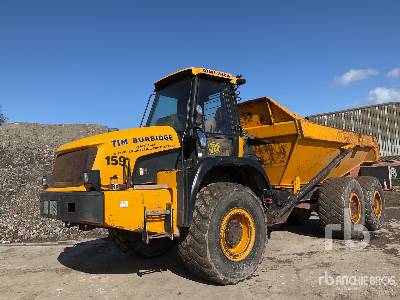

JCB 714 Articulated Dump Truck
Units
Dimensions
Dimensions
A
Overall Length
22.26ft in
B
Overall Width
8.21ft in
C
Overall Height
11.24ft in
D
Wheelbase
11.98ft in
E
Ground Clearance
1.42ft in
F
Dump Height
12.68ft in
G
Dump Ground Clearance
2.24ft in
Dump
H
Dump Angle
84degrees
Lower Time
10sec
Capacity - Heaped
9.6yd3
Rated Payload
28969lb
Raise Time
9.7sec
Specifications
Engine
Number Of Cylinders
6
Engine Make
2347
Engine Model
6BTAA
Gross Power
150hp
Net Power
143.5hp
Power Measured @
2200rpm
Max Torque
465lb ft
Torque Measured @
1500rpm
Aspiration
Turbo charged/charged cooled
Displacement
360.1cu in
Operational
Fuel Capacity
52.8gal
Hydraulic System Fluid Capacity
23.3gal
Cooling System Fluid Capacity
7.9gal
Engine Oil Capacity
4.3gal
Transmission Fluid Capacity
9.2gal
Operating Voltage
24V
Alternator Supplied Amperage
70amps
Tire Size
Michelin 20.5 R25
Transmission
Transmission Type
Smoothshift
Number Of Forward Gears
6
Number Of Reverse Gears
3
Max Speed
24.8mph
Weights
Front Axle - Empty
14043lb
Rear Axle - Empty
8311lb
Front Axle - Loaded
19775%
Rear Axle - Loaded
31240lb
Total Empty
22355lb
Total Loaded
51015lb
