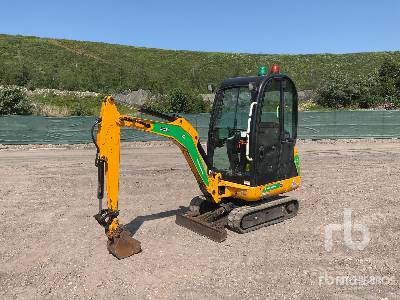

JCB 8016 Mini Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
A
Shipping Length Of Unit
10.92ft in
I
Max Cutting Height
11.17ft in
C
Shipping Height Of Unit
7.58ft in
J
Max Loading Height
8.25ft in
K
Max Reach Along Ground
12.33ft in
L
Max Vertical Wall Digging Depth
5.42ft in
M
Max Digging Depth
6.67ft in
Boom/Stick Option (Hex) 1
Arm Length 3ft.10in.(1161mm )
Boom/Stick Option (Hex) 2
I
Max Cutting Height
11.33ft in
A
Shipping Length Of Unit
10.67ft in
J
Max Loading Height
8.42ft in
C
Shipping Height Of Unit
7.5ft in
K
Max Reach Along Ground
12.58ft in
L
Max Vertical Wall Digging Depth
5.75ft in
M
Max Digging Depth
7ft in
Boom/Stick Option (Hex) 2
Arm Length 4ft.2in.(1261mm )
Dimensions
B
Width To Outside Of Tracks
3.22ft in
D
Length Of Track On Ground
3.67ft in
E
Ground Clearance
0.6ft in
G
Height To Top Of Cab
7.58ft in
H
Tail Swing Radius
3.33ft in
Removal Counterweight Clearance
1.25ft in
Undercarriage
N
Shoe Size
9.06in
F
Track Gauge
2.42ft in
Ground Pressure
4.27psi
Number Of Track Rollers Per Side
3
Max Travel Speed
2.36mph
Specifications
Engine
Engine Model
403C-11
Gross Power
19.7hp
Net Power
19hp
Power Measured @
2200rpm
Displacement
69cu in
Max Torque
45.8lb ft
Torque Measured @
1600rpm
Operational
Operating Weight
3505lb
Fuel Capacity
6.2gal
Cooling System Fluid Capacity
1.4gal
Hydraulic System Fluid Capacity
7.4gal
Engine Oil Capacity
1.1gal
Operating Voltage
12V
Alternator Supplied Amperage
40amps
Hydraulic System Relief Valve Pressure
3336psi
Hydraulic Pump Flow Capacity
7.1gal/min
Swing Mechanism
Swing Speed
10rpm
