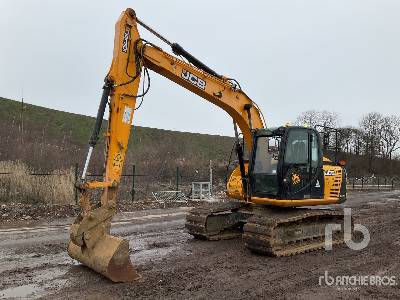

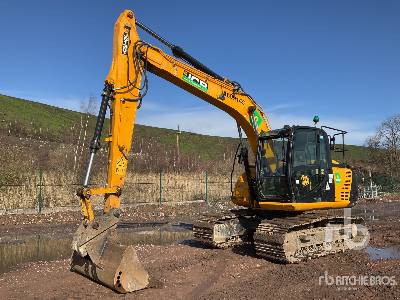

JCB JS130L Hydraulic Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
A
Shipping Length Of Unit
25ft in
C
Shipping Height Of Unit
9.5ft in
I
Max Cutting Height
28.92ft in
J
Max Loading Height
21.08ft in
K
Max Reach Along Ground
25.67ft in
L
Max Vertical Wall Digging Depth
15ft in
M
Max Digging Depth
16.93ft in
Boom/Stick Option (Hex) 1
Arm Lenght 6ft.11in. (2.10m ) Boom 15ft.5in.(4.70m )
Boom/Stick Option (Hex) 2
A
Shipping Length Of Unit
25.08ft in
I
Max Cutting Height
29.83ft in
C
Shipping Height Of Unit
9.5ft in
J
Max Loading Height
22ft in
K
Max Reach Along Ground
26.92ft in
L
Max Vertical Wall Digging Depth
16.33ft in
M
Max Digging Depth
18.25ft in
Boom/Stick Option (Hex) 2
Arm Length 8ft.2in.(2.50m )Boom 15ft. 5in. (4.70m )
Boom/Stick Option (Hex) 3
A
Shipping Length Of Unit
25.17ft in
I
Max Cutting Height
30.83ft in
J
Max Loading Height
23ft in
C
Shipping Height Of Unit
9.5ft in
K
Max Reach Along Ground
28.42ft in
L
Max Vertical Wall Digging Depth
17.83ft in
M
Max Digging Depth
19.83ft in
Boom/Stick Option (Hex) 3
Arm Length 9ft. 11in. (3.00m ) Boom 15ft.5in.(4.70m )
Dimensions
E
Ground Clearance
1.5ft in
G
Height To Top Of Cab
8.85ft in
B
Width To Outside Of Tracks
8.83ft in
D
Length Of Track On Ground
9.08ft in
H
Tail Swing Radius
6.75ft in
Removal Counterweight Clearance
3ft in
Undercarriage
F
Track Gauge
6.5ft in
N
Shoe Size
20in
Max Travel Speed
3.3mph
Ground Pressure
7.82psi
Number Of Shoes Per Side
44
Number Of Carrier Rollers Per Side
1
Number Of Track Rollers Per Side
7
Drawbar Pull
29225lb
Specifications
Engine
Engine Make
2291
Engine Model
Isuzu A4BGIT A Tier II emissions complaint
Net Power
114hp
Power Measured @
2200rpm
Aspiration
Turbocharged Diesel
Displacement
264cu in
Operational
Operating Weight
30645lb
Fuel Capacity
63.5gal
Cooling System Fluid Capacity
4.3gal
Hydraulic System Fluid Capacity
32.8gal
Engine Oil Capacity
3.2gal
Operating Voltage
24V
Swing Drive Fluid Capacity
0.6gal
Alternator Supplied Amperage
40amps
Hydraulic System Relief Valve Pressure
4610psi
Hydraulic Pump Flow Capacity
64gal/min
Swing Mechanism
Swing Speed
10rpm
Buckets
Reference Bucket Capacity
0.8yd3
Minimum Bucket Capacity
0.5yd3
Maximum Bucket Capacity
1.1yd3
