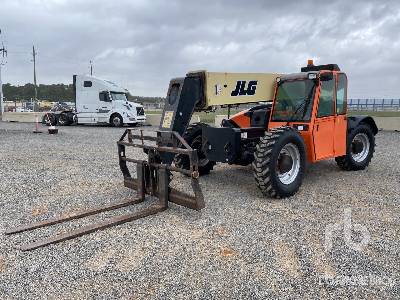

JLG 10042 Telescopic Forklift
Units
Dimensions
Dimensions
E
Ground Clearance
1.6ft in
C
Overall Height
8.4ft in
D
Wheelbase
10ft in
Width
8.6ft in
Overall Length
20.8ft in
Turning Radius Outside Tires
14.2ft in
Lift
F
Max Lift Height
42.1ft in
Max Lift Capacity
10000lb
Load Center
2ft in
Max Load At Max Height
6000lb
Max Load At Max Reach
2000lb
Specifications
Engine
Engine Model
QSB3.8L Tier 4 Final
Gross Power
110hp
Power Measured @
1500rpm
Capacities
Fuel Tank
35gal
Operational
Drawbar Pull
24500lb
Tire Size
400/75-28
Performance
Maximum Lift
16.4sec
Maximum Lower
15sec
Maximum Telescope In
15.1sec
Maximum Telescope Out
17.2sec
Maximum Travel
20mph
Transmission
Transmission Type
Powershift
Number Of Forward Gears
4
Number Of Reverse Gears
3
Weights
Operating Weight
27300lb
Hydraulic
Pump Type
Var Load Sensing Piston
Axles
Front
High Bias, Limited Slip
Rear
Oscillating
Brakes
Brakes Type
Wet Multi-Disc
