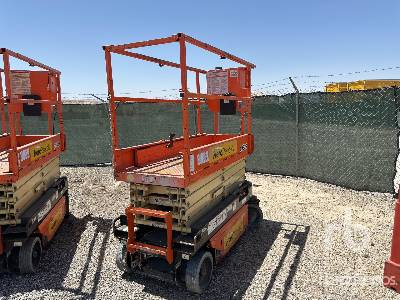

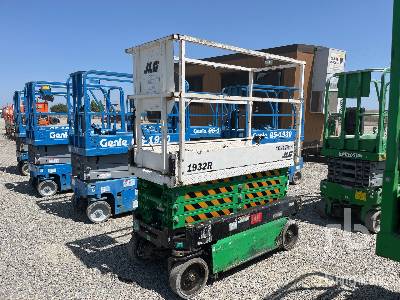

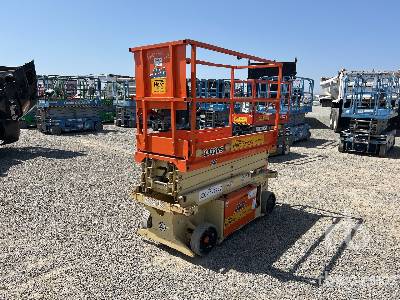

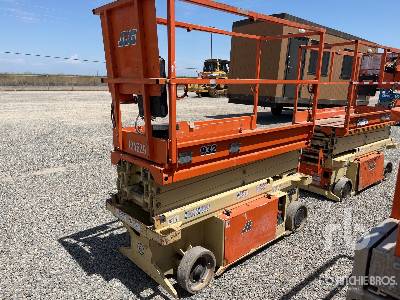

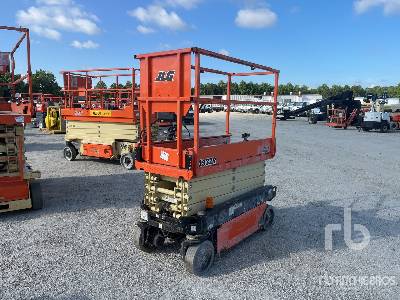

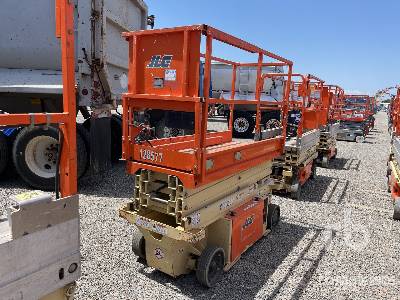

JLG 1932R Scissor Lift
Units
Dimensions
Dimensions
A
Overall Length
69in
D
Wheelbase
4.5ft in
B
Overall Width
2.8ft in
E
Ground Clearance
3in
Turning Radius
5.6ft in
Overall Height
6.7ft in
Platform
F
Max Platform Height
19ft in
J
Height Of Rails
3.4ft in
Lift Time
25sec
Platform Capacity - Extension
250lb
Platform Capacity - Unrestricted
550lb
Lower Time
26sec
Max Working Height
25ft in
Specifications
Engine
Maximum Ground Bearing Pressure
101psi
Battery Amp Hours
4 x 6V 220 amp-hour
Charger Amps
27amps
Operational
Operating Weight
2630.1lb
Hydraulic System Fluid Capacity
4.5gal
Tire Size
12 x 4 in
Hydraulic Pump Type
Fixed Displacement Gear
Performance
Drive Speed - Platform Elevated
0.5mph
Drive Speed - Platform Lowered
2mph
Drive System
Hydraulic Front Wheel
Maximum Drive Height
19ft in
Gradeability
25%
Brakes
Brakes Type
Multi-Disc Friction
