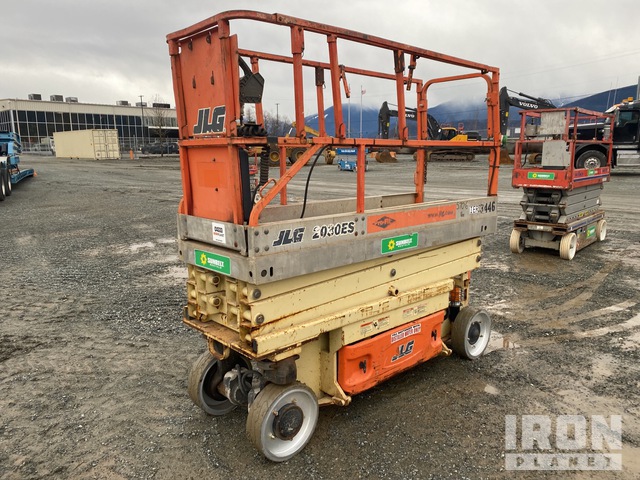

JLG 2030ES Scissor Lift
Units
Dimensions
Dimensions
A
Overall Length
7.55in
D
Wheelbase
6.17ft in
B
Overall Width
2.5ft in
C
Height W/ Rails
7.22ft in
E
Ground Clearance
3.47in
Turning Radius
6.76ft in
Platform
F
Max Platform Height
20.02ft in
I
Deck Extension
35.44in
J
Height Of Rails
3.61ft in
Max Platform Weight Capacity
800.28lb
Lower Time
30sec
Platform Inner Length
90.56in
Platform Inner Width
29.93in
Lift Time
30sec
Specifications
Engine
System Voltage
24V
Number Of Batteries
4
Battery Amp Hours
200
Charger Amps
20amps
Operational
Operating Weight
3747.9lb
Hydraulic System Fluid Capacity
1.3gal
Max Speed
3mph
Tire Size
16x5
Tire Fill/Type
Solid, Non-marking
