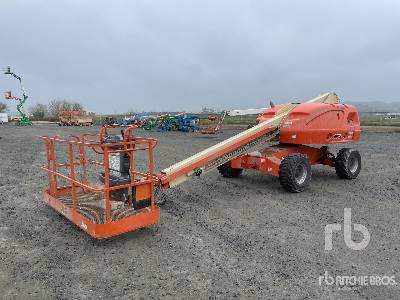

JLG 400S Boom Lift
Units
Dimensions
Dimensions
A
Overall Length
24.74in
B
Overall Width
7.55ft in
C
Overall Height - Mast Lowered
7.85ft in
D
Wheelbase
7.68ft in
E
Ground Clearance
12.6in
Platform Dimension A
3ft in
Platform Dimension B
8ft in
Turning Radius
16.41ft in
Platform
F
Max Platform Height
40.36ft in
G
Max Horizontal Reach
34.13ft in
Platform Inner Length
96.07in
Max Platform Weight Capacity
992.09lb
Platform Inner Width
35.83in
Platform Rotation
180degrees
Specifications
Engine
Diesel Engine Type
Deutz D2.9L4 Tier 4 Final
Diesel Engine Power
49hp
Dual Fuel Engine Type
GM Vortec 3000 MPFI
Maximum Ground Bearing Pressure
60psi
Dual Fuel Engine Power
82hp
Engine Make
2349
Engine Model
F3M1011
Gross Power
48.1hp
Displacement
177cu in
Fuel Type
Diesel
System Voltage
12V
Operational
Operating Weight
12524.5lb
Fuel Capacity
26.1gal
Hydraulic System Fluid Capacity
42.1gal
Max Speed
4.5mph
Tire Size
12 x 16.5
Tire Fill/Type
Pneumatic Lug Tread Tires
Performance
Drive Speed
4.5mph
Swing
360degrees
Swing Type
Continuous
Gradeability
45%
