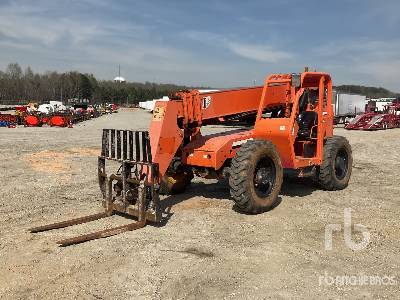

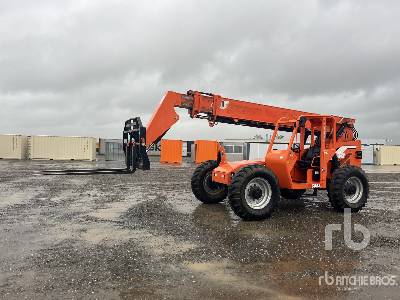

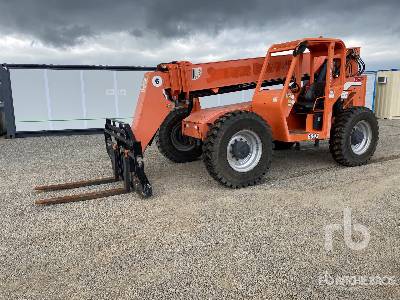

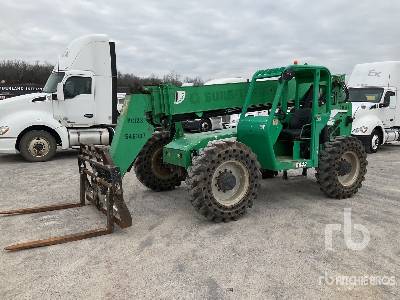

JLG 6042 Telescopic Forklift
Units
Dimensions
Dimensions
E
Ground Clearance
1.3ft in
C
Overall Height
8.6ft in
D
Wheelbase
9.5ft in
Width
8.31ft in
Overall Length
19.61ft in
Lift
F
Max Lift Height
41.11ft in
Max Load At Max Reach
1400lb
Load Center
2ft in
Max Lift Capacity
6000lb
Max Load At Max Height
6000lb
Specifications
Engine
Engine Model
QSF3.8L Tier 4 Final
Gross Power
74hp
Power Measured @
1400rpm
Capacities
Fuel Tank
35gal
Operational
Drawbar Pull
22000lb
Tire Size
370/75-28
Performance
Maximum Lift
14.3sec
Maximum Lower
10.5sec
Maximum Telescope In
17.2sec
Maximum Telescope Out
17sec
Maximum Travel
19mph
Transmission
Transmission Type
Powershift
Number Of Forward Gears
4
Number Of Reverse Gears
3
Weights
Operating Weight
25100lb
Axles
Front
High Bias, Limited Slip
Rear
Oscillating
Brakes
Brakes Type
Wet Multi-Disc
