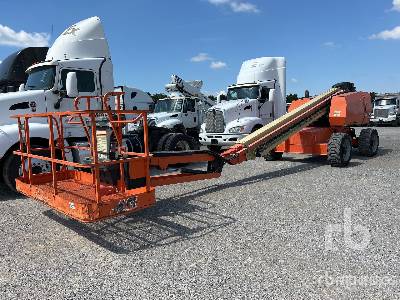

JLG 660SJ 2WD Boom Lift
Units
Dimensions
Dimensions
A
Overall Length
425in
B
Overall Width
8.2ft in
C
Overall Height - Mast Lowered
8.44ft in
D
Wheelbase
8.08ft in
E
Ground Clearance
11in
Platform Dimension B
8.01ft in
Overall Height
8.2ft in
Turning Radius
17.7ft in
Tailswing Radius
0.01ft in
Platform Dimension A
2.99ft in
Platform
F
Max Platform Height
66.67ft in
G
Max Horizontal Reach
57.1ft in
Platform Inner Length
96.07in
Platform Inner Width
35.83in
Platform Railing Height
65.69ft in
Platform Rotation
180degrees
Platform Capacity - Unrestricted
550lb
Platform Capacity - Restricted
750lb
Max Platform Weight Capacity
500.45lb
Specifications
Engine
Fuel Tank
31gal
Diesel Engine Type
Deutz TD2.9L4 Tier 4 Final
Diesel Engine Power
67hp
Dual Fuel Engine Type
Ford MSG425-DF
Dual Fuel Engine Power
84hp
Maximum Ground Bearing Pressure
85psi
Engine Make
2349
Engine Model
F4M2011
Gross Power
64.4hp
Fuel Type
Diesel
System Voltage
12V
Operational
Operating Weight
25341lb
Fuel Capacity
39.9gal
Hydraulic System Fluid Capacity
34gal
Max Speed
4.3mph
Tire Size
41/181.11 X 22.5
Tire Fill/Type
Lug Tread
Performance
Axle Oscillation
0.7ft in
Swing
360degrees
